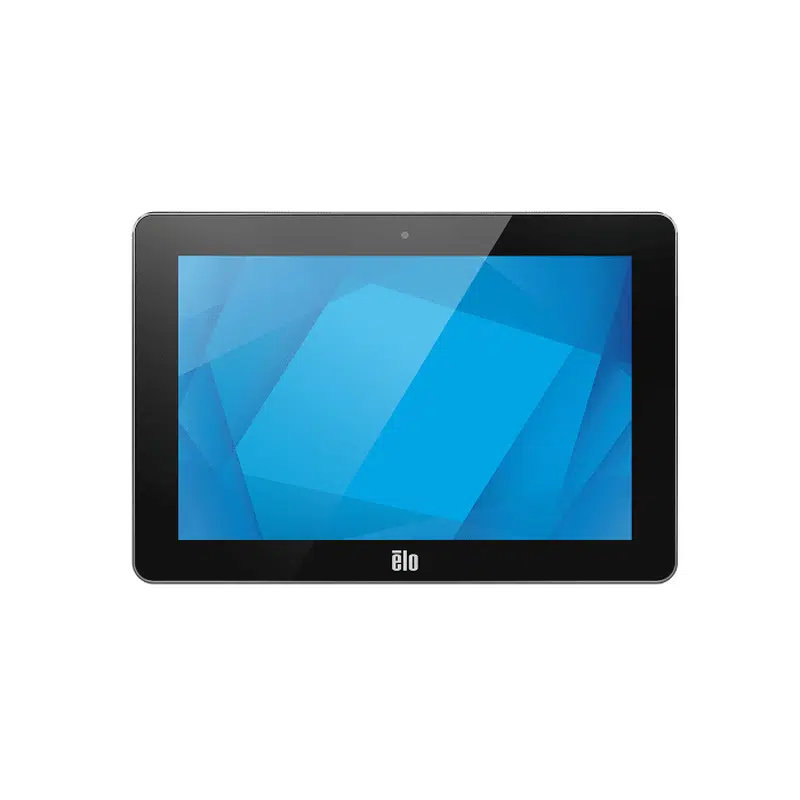

Elo I-Series 5 Steel, without PoE, 25,7cm (10,1”), Projected Capacitive, 10 TP, USB, USB-C, BT, Ethernet, Wi-Fi, QCS6490, Android, GMS
HIGHLIGHTS
- Indoor Digital signage flat panel Stainless steel
- 25.6 cm (10.1") 1920 x 1200 pixels LED 450 cd/m²
- Touchscreen 60 Hz 30 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 1.5 W
Elo I-Series 5 Steel, without PoE, 25,7cm (10,1”), Projected Capacitive, 10 TP, USB, USB-C, BT, Ethernet, Wi-Fi, QCS6490, Android, GMS
10.1”, 1920 x 1200 @ 60Hz, Qualcomm Snapdragon QCS6490, 8 GB, 16:10, 100 – 240 V AC, 50 – 60 Hz, 262.58 mm x 179.38 mm x 32.48 mm, 1.3 kg, Stainless Steel, Without PoE
7.019,00kr. Excl. VAT
- Description
- Additional information
Description
Elo Touch Solutions I-Series 5 Steel. Product design: Digital signage flat panel. Display diagonal: 25.6 cm (10.1″), Display technology: LED, Display resolution: 1920 x 1200 pixels, Display brightness: 450 cd/m², HD type: Full HD+, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Stainless steel
Designed intentionally for demanding environments.
Elo has designed and engineered the I-Series Steel to help ensure optimal versatility for seamless integration into almost any environment.
Fully integrated power-over-ethernet (POE).
With POE, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and an ethernet cable and you are ready to power on.
Integrated VESA for ease of mounting.
The industrial-grade I-Series Steel can be mounted in landscape and portrait, providing optimal flexibility for mounting to a wall, pole, arm or any third party compatible VESA mount.
Additional information
| Display diagonal | 25.6 cm (10.1″) |
|---|---|
| Display technology | LED |
| Display resolution | 1920 x 1200 pixels |
| Display brightness | 450 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Response time | 30 ms |
| Contrast ratio (typical) | 900:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Built-in speaker(s) | Yes |
| RMS rated power | 1.5 W |
| Product colour | Stainless steel |
| VESA mounting | Yes |
| Screen shape | Flat |
| Panel mounting interface | 75 x 75 mm |
| Power consumption (typical) | 6 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Package width | 353 mm |
| Package depth | 173 mm |
| Package height | 20 mm |
| Package weight | 2.8 kg |
| Cables included | Power |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 50 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Aspect ratio | 16:10 |
| HD type | Full HD |
| Panel type | TFT-LCD |
| Number of simultaneous touchpoints | 10 |
| Mean time between failures (MTBF) | 50000 h |
| Certification | UL/cUL (US)FCC (US)IC (Canada)CE (Europe)CB (International)VCCI, MIC (Japan)RCM (Australia) |
| Ethernet LAN (RJ-45) ports | 1 |
| Placement supported | Indoor |
| Native refresh rate | 60 Hz |
| DC-in jack | Yes |
| Multi-touch | Yes |
| Active display area (W x H) | 217 x 136 mm |
| USB port | Yes |
| Wi-Fi | Yes |
| USB ports quantity | 2 |
| Number of built-in speakers | 2 |
| Product design | Digital signage flat panel |
| Purpose | Commercial |
| Power consumption (sleep) | 2 W |
| Ethernet LAN | Yes |
| Orientation | Horizontal/Vertical |
| Display width | 262.6 mm |
| Display depth | 32.5 mm |
| Display height | 179.4 mm |
| Display weight | 1.3 kg |
| Number of displays | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Number of microphones | 2 |
| Built-in processor | Yes |
| Processor manufacturer | Qualcomm |
| Processor cores | 8 |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Operating system installed | Android |
| Operating system version | Android 14 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Megapixel (approx.) | 8 MP |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
