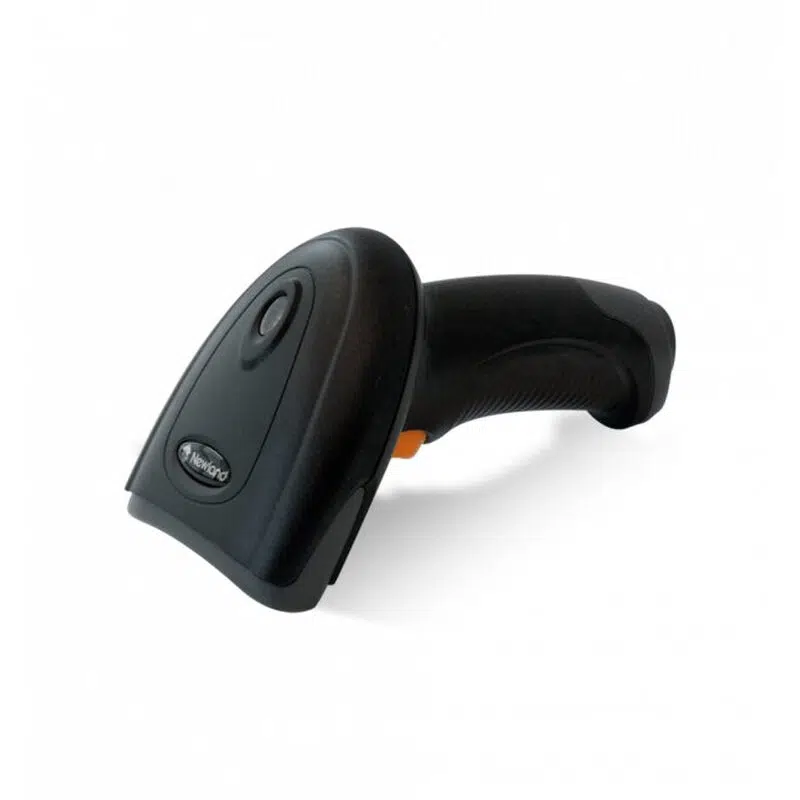

NewLand HR11 Aringa, 1D, USB, RS232, kit (USB), black
HIGHLIGHTS
- Value for money
- Ergonomic design
- Scanning from paper and screen
- Foldable smart stand available
- Application scenarios
NewLand HR11 Aringa, 1D, USB, RS232, kit (USB), black
Red LED, 40-480 mm aiming, Trigger, 300 scans/sec, USB, 101 x 68 x 145 mm, 120 g
383,00kr.
- Description
- Additional information
- Documents
Description
Newland HR11 Aringa. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP42. Power source type: DC, Power consumption (typical): 0.352 W, Input voltage: 5 V. Weight: 120 g, Width: 68 mm, Depth: 101 mm
With operational streamlining in mind, the HR11 Aringa ensures increased efficiency and operator comfort for intensive handheld scanning. Its compact housing is durable (1.5m drop rate) and lightweight (120g). The ergonomic design is sure to reduce user fatigue and maximize operator comfort for everyday intensive handheld scanning.
The HR11 Aringa ensures operator comfort and productivity for intensive handheld scanning.
With operational streamlining in mind, the HR11 Aringa ensures increased efficiency and operator comfort for intensive handheld scanning. Its compact housing is durable (1.5m drop rate) and lightweight (120g). The ergonomic design is sure to reduce user fatigue and maximize operator comfort for everyday intensive handheld scanning.
Value for money.
The HR11 Aringa is compact & ergonomic in design, making it comfortable in use during daily operations. It delivers outstanding scanning performance with a 2500-pixel linear imager and offers an excellent user experience at an affordable price.
Ergonomic design.
Blending ergonomics and aesthetics in its design, the HR11 Aringa ensures operator comfort and productivity for intensive handheld scanning.
Scanning from paper and screen.
Equipped with Newland’s NLDC technology (1D decoder chip), the HR11 Aringa is optimized for fast scanning of 1D barcodes printed on paper or displayed on screen to support the diverse requirements of Retail scanning and emerging applications including O2O (Online2Offline).

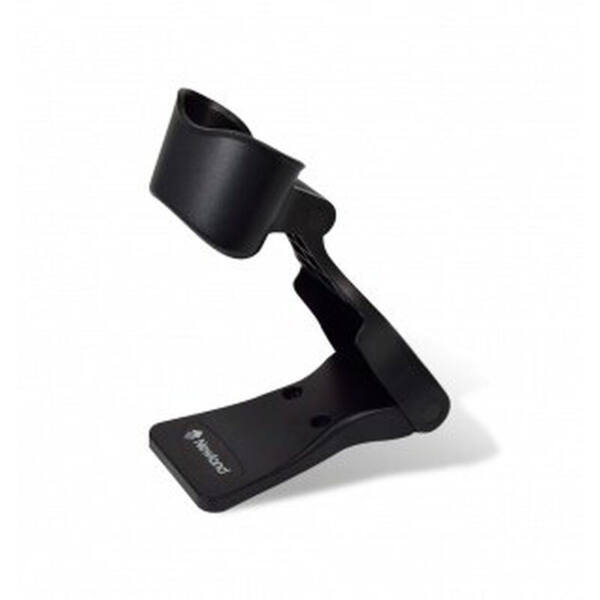

Foldable smart stand available.
A foldable smart stand is available for the HR11 Aringa, allowing you to quickly switch between hand-held scanning and hands-free scanning.
Application scenarios.
Retail, O2O, pharmacy, cosmetics & drug stores, smaller sized grocery stores, tobacco kiosks and in a ticketing booth for reading and validating mobile or paper tickets.
1D CCD Handheld Reader (black surface) with USB cable, autosense, incl. foldable smart stand (SET).
5 years
Additional information
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D |
| Sensor type | LED |
| Light levels (direct sunlight) | 0 – 100000 lx |
| Tilt reading angle | -70 – 70° |
| Pitch reading angle | -60 – 60° |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Buzzer | Yes |
| Power source type | DC |
| Power consumption (typical) | 0.352 W |
| Input voltage | 5 V |
| Power consumption | 70.4 mA |
| Weight | 120 g |
| Width | 68 mm |
| Depth | 101 mm |
| Height | 145 mm |
| Cables included | USB |
| Operating temperature (T-T) | -20 – 60 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Wavelength | 620 nm |
| International Protection (IP) code | IP42 |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| Keys quantity | 1 keys |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E |
| Certification | FCC Part15 Class B，CE EMC Class B, IEC62471,KC |
| Read rate (max) | 300 reads/s |
| Working distance | 48 cm |
| AC adapter output voltage | 100 – 240 V |
| Input frequency | 50 – 60 Hz |
| Maximum scan width | 18 cm |
| Compliance certificates | RoHS |
