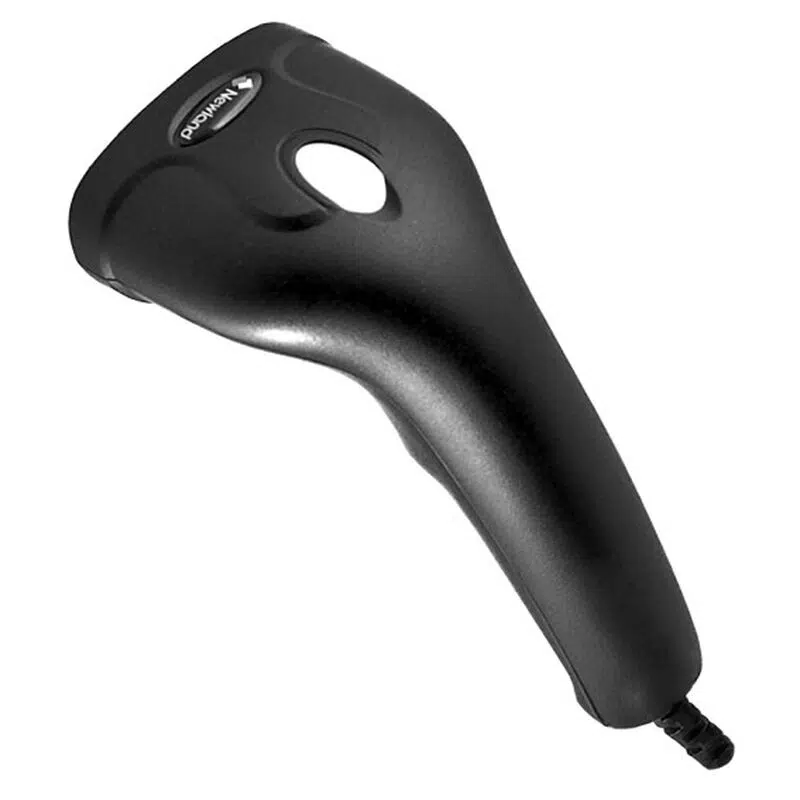

NewLand HR12 Anchoa, 1D, USB, kit (USB), black
HIGHLIGHTS
- Handheld bar code reader Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) Black
- Scanner type: 1D Sensor type: CCD
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF-14, MSI
- Tilt reading angle: -60 - 60°
- Built-in processor
- Wired Standard interfaces: USB
- Power source type: DC
NewLand HR12 Anchoa, 1D, USB, kit (USB), black
1D, CCD, 610-640nm, ≥4mil, USB, Black, 130g
222,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Newland HR12 Anchoa. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 2 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP41. Power source type: DC, Power consumption: 120 mA. Weight: 130 g, Width: 68.4 mm, Depth: 163 mm
The HR12 Anchoa handheld scanner is a practical & user friendly entry level scanner at an extremely competitive price. The Anchoa incorporates Newland’s 1D chip technology for excellent 1D barcode scanning performance at exceptionally low power consumption.
The HR12 Anchoa can perform up to 300 scans per second, which translates into very fast and accurate barcode capturing. In addition, its compact size, ergonomic and solid state design makes a smart solution for extensive use in varied environments.
5 years
Scan & Camera
| Scanner type | 1D |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -30 - 30° |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF-14, MSI |
| Read rate (max) | 300 reads/s |
Connectivity & Ports
| Standard interfaces | USB |
| Cable length | 2 m |
| Cables included | USB |
Processor & Memory
| Built-in processor | Yes |
Battery & Power
| Power source type | DC |
| Power consumption | 120 mA |
Dimensions, Weight & Design
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Weight | 130 g |
| Width | 68.4 mm |
| Depth | 163 mm |
| Height | 58.5 mm |
| Wavelength | 640 nm |
Operating Conditions
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| International Protection (IP) code | IP41 |
Certifications
| Certification | FCC Part15 Class B, CE EMC Class B |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Other specifications
| Type | Handheld bar code reader |
| Sensor type | CCD |
| Connectivity technology | Wired |
| LED indicators | Yes |
| Protection features | Electrostatic Discharge (ESD) protection |
| Warranty period | 5 year(s) |
