NewLand HR15 Wahoo-Serie, 1D, USB, RS232, kit (RS232), black
HIGHLIGHTS
- Data Acquisition
- Lightweight ergonomic design
- Interface
- Durable Construction
- Application scenarios
- Description
- Additional information
- Documents
Description
Newland HR15 Wahoo. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP54. Power source type: DC, Input voltage: 5 V, Input frequency: 50 – 60 Hz. Weight: 152 g, Width: 113.5 mm, Depth: 73 mm

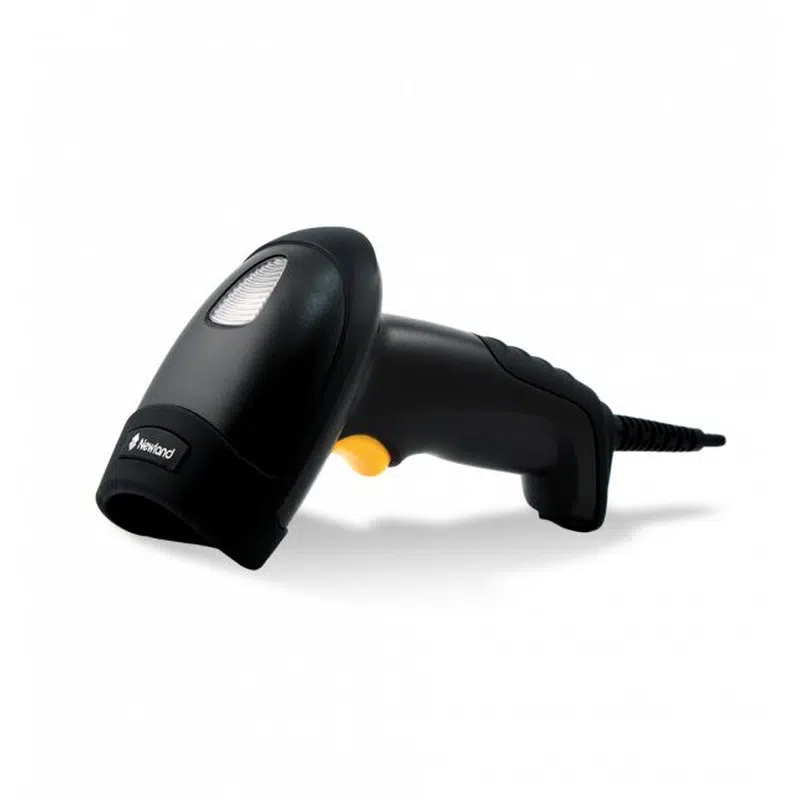

The HR15 Wahoo handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. This model supports standard RS-232 / USB / PS2 PC interface.
Enables all day scanning comfort to protect productivity in scan-intensive applications.
The HR15 Wahoo corded handheld scanner presents a rugged and compact solution for use in supermarkets, shopping malls and warehouse environments.
Data Acquisition.
The HR15 Wahoo Corded handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. It supports common 1D barcodes and PDF417 and MicroPDF417 stacked 2D barcodes.
Lightweight ergonomic design.
This corded handscanner lies comfortably in your hand and enables all day scanning comfort in scan-intensive situations. This helps reduce fatigue and protects the workforce productivity.
Interface.
The HR15 Wahoo Corded supports standard RS-232 / USB / PS2 PC interfaces.
Durable Construction.
The HR15 Wahoo Corded was created to perform in harsh and demanding environments. With a sealing of IP54, this handheld scanner is protected against dust and moisture. With a drop resistance of 1.5m, it can withstand everyday drops and bumps.
Application scenarios.
With good performance, this rugged and compact scanner is suitable for applications in supermarkets, shopping malls, warehouse environment application and more.
1D CCD Handheld Reader (black surface) with RS232 cable and multi plug adapter, autosense, smart stand ready.
Scan & Camera
| Scanner type | 1D |
| Tilt reading angle | -75 - 75° |
| Pitch reading angle | -55 - 55° |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, Interleaved 2 of 5, PDF417, Plessey, UPC-E |
| Read rate (max) | 300 reads/s |
| Working distance | 46.5 cm |
Connectivity & Ports
| Standard interfaces | RS-232 |
| Cables included | AC, RS-232 |
Audio
| Buzzer | Yes |
Processor & Memory
| Input voltage | 5 V |
| Input frequency | 50 - 60 Hz |
Battery & Power
| Power source type | DC |
| Power consumption | 13 mA |
| AC adapter output voltage | 100 - 240 V |
| External power adapter | Yes |
Dimensions, Weight & Design
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Weight | 152 g |
| Width | 113.5 mm |
| Depth | 73 mm |
| Height | 159 mm |
| Wavelength | 620 nm |
Operating Conditions
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| International Protection (IP) code | IP54 |
Certifications
| Certification | FCC Part15 Class B, CE EMC Class B, IEC62471, KC |
| Compliance certificates | RoHS |
Other specifications
| Type | Handheld bar code reader |
| Sensor type | LED |
| Connectivity technology | Wired |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| Keys quantity | 1 keys |
