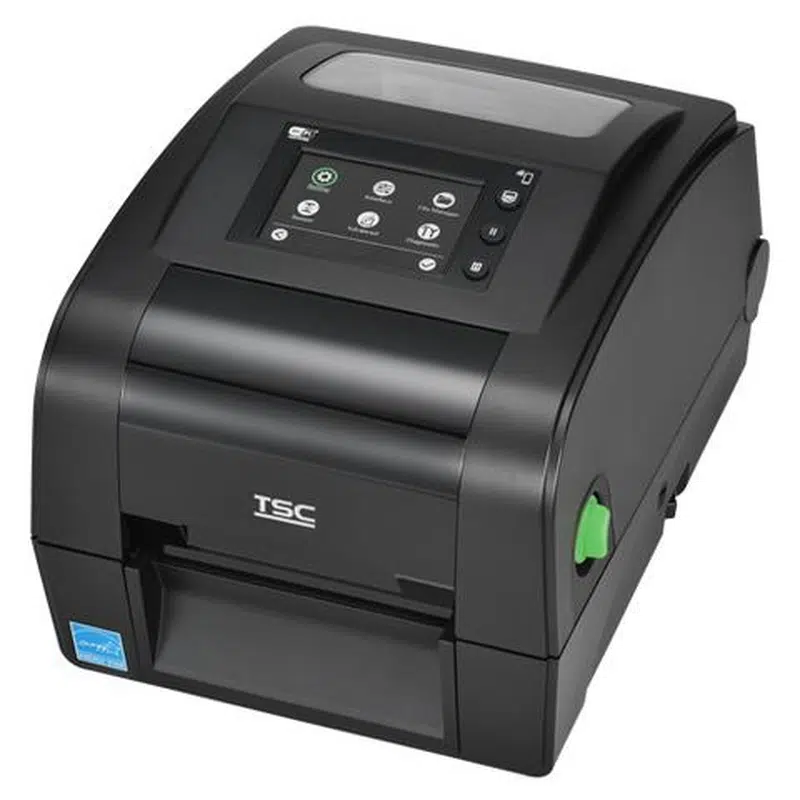

TSC TH340T, Buzzer, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, Ethernet, kit (USB)

HIGHLIGHTS

  • Direct thermal / Thermal transfer
  • 300 x 300 DPI
  • Maximum printing width: 10.6 cm Print speed: 152 mm/sec
  • Built-in barcodes: 1D, 2D, AZTECCODE, China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
  • Connectivity technology: Wired & Wireless
  • USB port Ethernet LAN Wi-Fi Bluetooth 5.0
  • Display: LCD 8.89 cm (3.5") 480 x 320 pixels Colour display
  • 2.8 kg

TSC TH340T, Buzzer, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, Ethernet, kit (USB)

Thermal Transfer Label Printer (Healthcare), 300 dpi, Color Touch LCD, DRAM 128MB / Flash 128MB, Buzzer, 12 dots/mm, RTC, USB, USB Host, RS232, Ethernet, kit (USB)

4.147,00kr. Excl. VAT

SKU: TH340-A001-0002
In stock – 2-5 days delivery

Description

TSC TH340T. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, Bluetooth version: 5.0, USB port. Supported paper width: 15 – 120 mm. Product colour: Black

Seamless Integration, Effortless Deployment

– Out-of-the-box auto-switch print language emulation
– User-friendly and convenient label printing with TSC Standalone Creator and TSCPRTGo

Minimising Downtime, Maximising Uptime

– Real-time remote printer monitoring and management with the Internal Embedded Webpage, virtual control panel, TSC Console, and SOTI Connect
– Downtime prevention with self-diagnostic TPH Care, TPH (thermal printhead) maintenance, and ribbon low warning
– User-friendly design: self-diagnostics, toolless TPH and platen roller replacement for easy maintenance, and shortcut buttons for enhanced efficiency
– Supports network security configurations: HTTPS, SNMPv3, 802.1X, and TCP/IP Port 9100 filter

Versatile, Future-Proof Print Quality

– 15mm to 120mm wide media width for diverse media types, optional narrow media adaptors support the narrow label width to 10mm
– High-precision print quality with innovative label stabilising media damper and adjustments in vertical DPI, heater line, and TPH pressure
– Supports UTF-8 TTF (TrueType Font) for different language label content printing
– Addable future-proof upgrades: Wi-Fi, Bluetooth, cutter module, peeler module, care label cutter kit, linerless tear-off kit, and linerless cutter kit

Environmentally Sustainable Printer

– 100% recyclable packaging with FSC-compliant cartons
– 100% recyclable plastic printer casing made with 30% recycled plastic
– 90%+ of printer components are recyclable

Healthcare Tailored Design

– Crisp white and bright full-colour scheme, perfectly suited for healthcare environments
– Antimicrobial, easy-to-disinfect casing for effortless cleaning, vastly reducing the risk of contamination
– IEC 60601-1 Medical-Grade Compliant Power Supply, ensuring safe and reliable use in healthcare facilities

– Extended Warranty 5 years- Comprehensive Warranty 3 & 5 years

Scan & Camera

Built-in barcodes1D, 2D, AZTECCODE, China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN

Print

Print technologyDirect thermal / Thermal transfer
Print speed152 mm/sec
Maximum printing width10.6 cm
Ribbon length300 m
Page description languagesDPL, EPL, TSPL, TSPL-EZ, ZPL, ZPL II
Ribbon width11 cm
Printable dot numbers12 dot
Power consumption (printing)90 W

Media & Labels

Maximum label length11.43 m
Maximum roll diameter12.7 cm
Supported paper width15 - 120 mm
Tape end detectionYes

Display

Maximum resolution300 x 300 DPI
DisplayLCD
Display diagonal8.89 cm (3.5")
Colour displayYes
Display resolution480 x 320 pixels
Built-in displayYes

Connectivity & Ports

Connectivity technologyWired & Wireless
Ethernet LANYes
USB portYes
RS-232 ports1
Cables includedAC, USB

Wireless & Network

Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version5.0

Processor & Memory

Internal memory128 MB
Flash memory128 MB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Built-in processorYes

Battery & Power

AC adapter output voltage24 V
AC adapter output current3.75 A

Dimensions, Weight & Design

Product colourBlack
Width223 mm
Depth286 mm
Height186 mm
Weight2.8 kg
ColourNo

Operating Conditions

Operating relative humidity (H-H)0 - 45%
Storage relative humidity (H-H)25 - 85%
Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)10 - 90 °C

Certifications

Compliance certificatesChina RoHS, REACH, RoHS, WEEE

Other specifications

Control typeButtons, Touch
Open cover detectionYes
Warranty period2 year(s)
