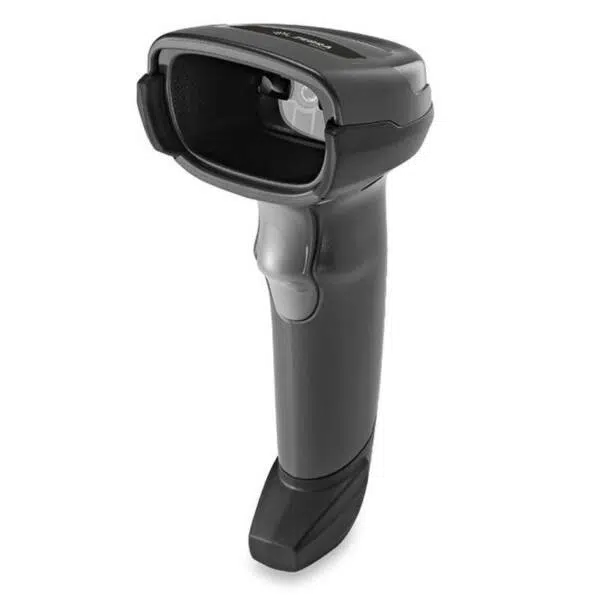

Zebra DS2208, Scanner, 1D/2D, USB KIT

HIGHLIGHTS

  • Handheld bar code reader Black
  • Scanner type: 1D/2D Sensor type: LED
  • Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
  • 640 x 480 pixels
  • Working distance: 36.8 cm
  • Tilt reading angle: -65 - 65°
  • Wired Standard interfaces: USB, RS-232, RS-485, Keyboard wedge
  • Power source type: DC Lithium-Ion (Li-Ion) 2400 mAh

Zebra DS2208, Scanner, 1D/2D, USB KIT

Incl. Cable (USB), Black

DS2208, USB-kit, SR, 1D/2D, 645nm, Roll 0-360°, Skew ± 65°, Pitch ± 65°, IP42, 161.6g, Black, Wired, USB/RS-232/RS-485/Keyboard Wedge

120,00  Excl. VAT

SKU: DS2208-SR7U2100AZW Delfi nr.: 7400560
In stock – 2-5 days delivery

Description

Zebra DS2208. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, RS-232, RS-485, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP42, Certification: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2…. Power source type: DC, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2400 mAh. Weight: 161.6 g, Width: 66 mm, Depth: 99 mm

AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

5 year

Scan & Camera

Scanner type1D/2D
Scanengine1D, 2D
Optical sensor resolution (W x H)640 x 480 pixels
Tilt reading angle-65 - 65°
Pitch reading angle-65 - 65°
Yaw reading angle-65 - 65°
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
Motion tolerance (cm/s)13
Working distance36.8 cm

Connectivity & Ports

ConnectionCabled
Standard interfacesUSB, RS-232, RS-485, Keyboard wedge
Cables includedMicro-USB

Battery & Power

Power source typeDC
Power consumption250 mA
Battery technologyLithium-Ion (Li-Ion)
Battery capacity2400 mAh
Battery life100 h
Charging baseNo
AC adapter output voltage5 V

Dimensions, Weight & Design

Product colourBlack
Weight161.6 g
Width66 mm
Depth99 mm
Height165 mm
Wavelength645 nm

Operating Conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
International Protection (IP) codeIP42

Certifications

Harmonized System (HS) code84716070
CertificationEN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07IEC 62471EN 55022 (Class B); EN 55032 (Class B)EN 55024EN 61000-3-2EN 61000-3-347 CFR Part
Compliance certificatesRoHS

Other specifications

TypeHandheld bar code reader
Sensor typeLED
Connectivity technologyWired
LED indicatorsYes
