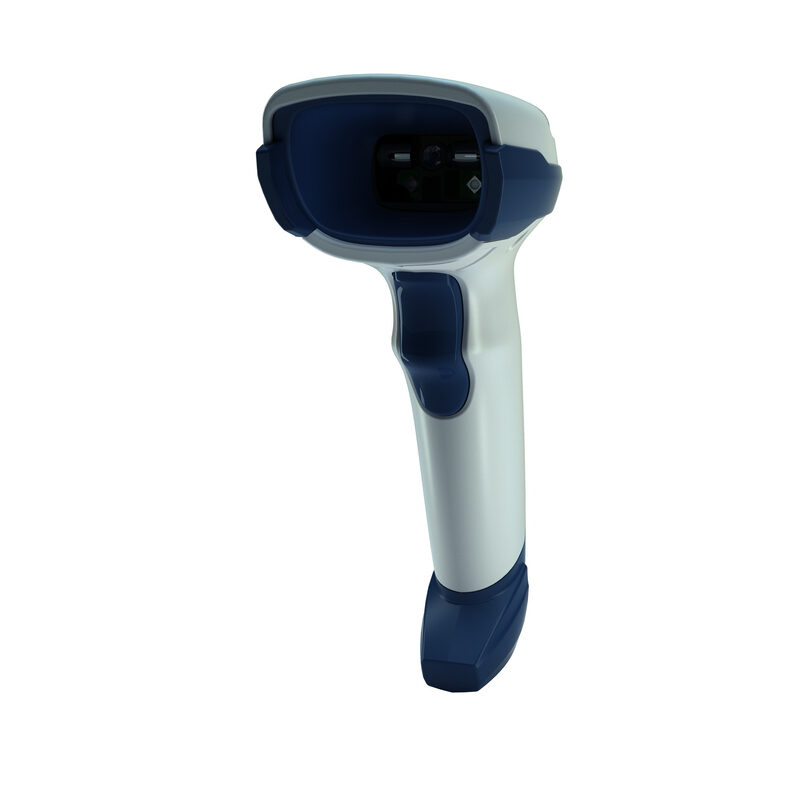

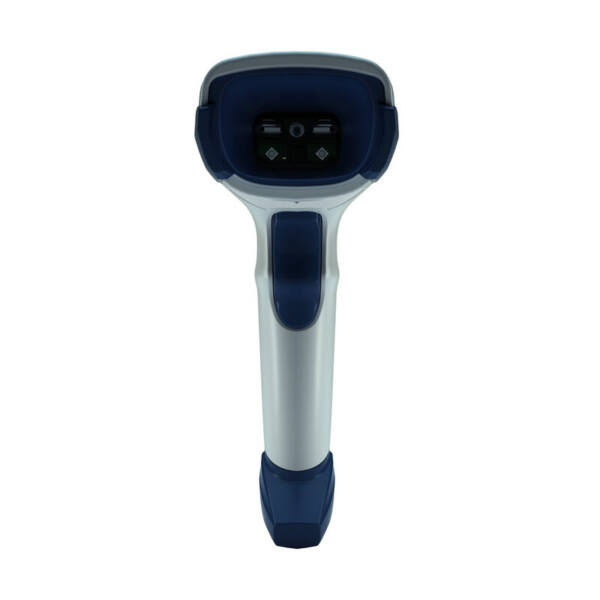

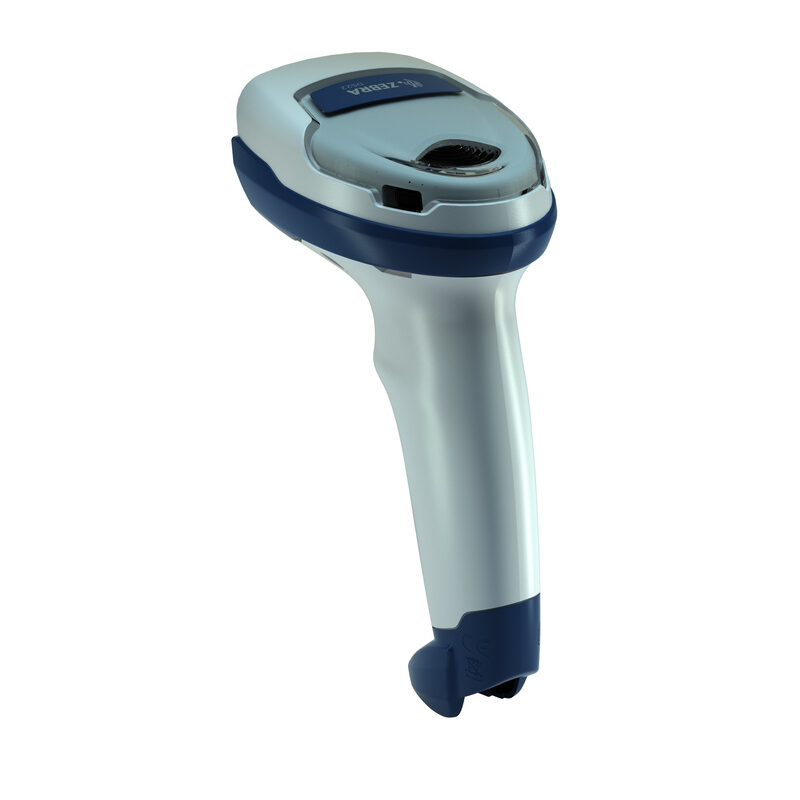

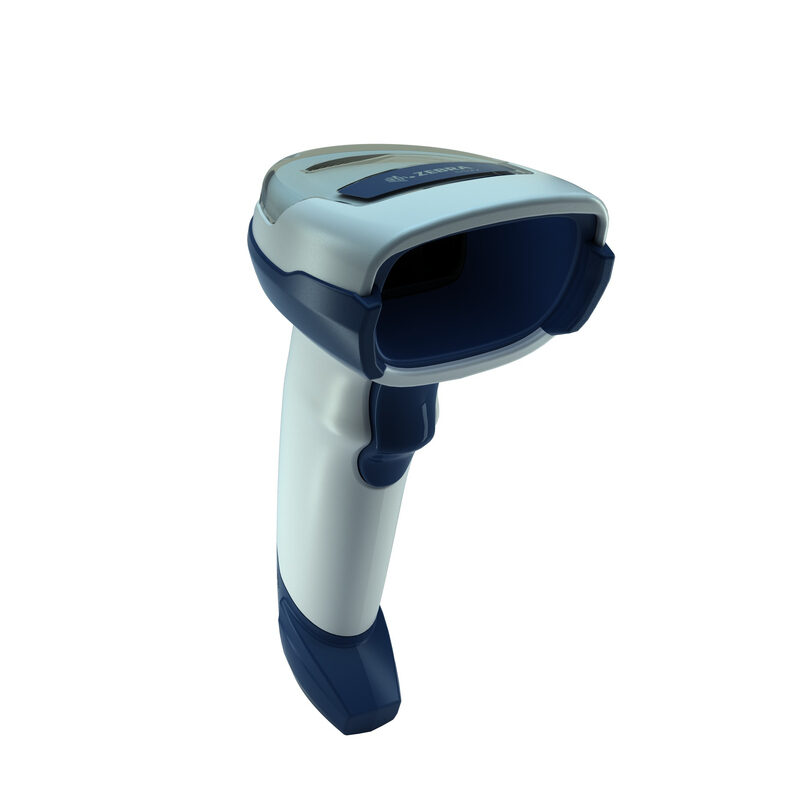

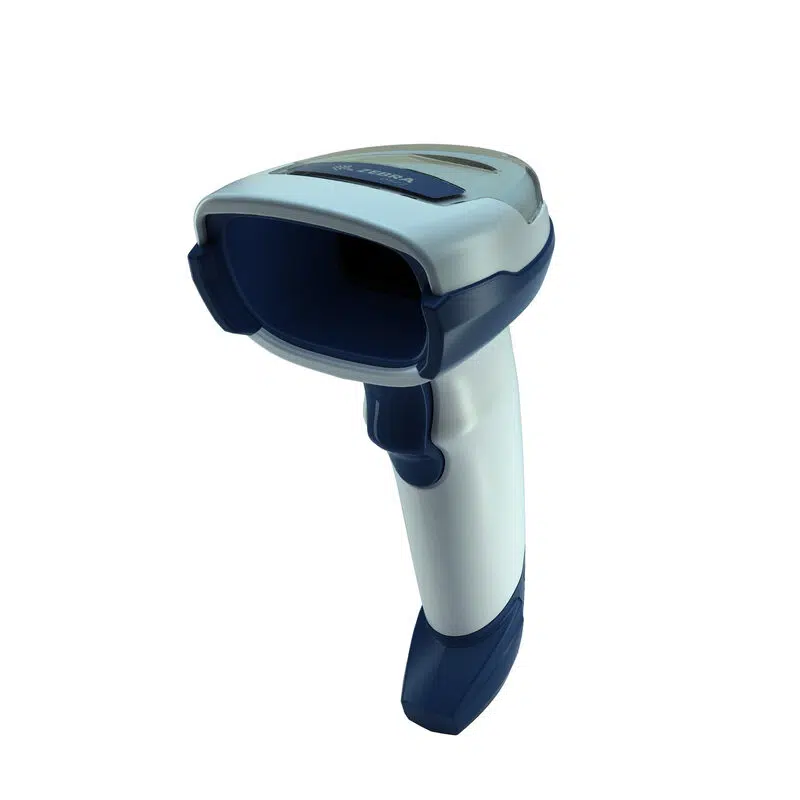

Zebra DS2208-HC, 2D, multi-IF, kit (USB), white

HIGHLIGHTS

  • Handheld bar code reader White
  • Scanner type: 1D/2D Sensor type: LED
  • Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
  • 640 x 480 pixels
  • Tilt reading angle: -65 - 65°
  • Wired Standard interfaces: USB, RS-232, RS-485, Keyboard wedge
  • Power source type: DC Lithium-Ion (Li-Ion) 2400 mAh

Zebra DS2208-HC, 2D, multi-IF, kit (USB), white

RS232, KBW, USB), protection class: IP52
incl.: cable (USB, straight, 2 m), colour: white

USB-kit, SR, 1D/2D, 645nm, Roll 0-360°, Skew ± 65°, Pitch ± 65°, IP42, 161.6g, Black, Wired, USB/RS-232/RS-485/Keyboard Wedge

1.139,00kr. Excl. VAT

SKU: DS2208-HCBU2100AZR Delfi nr.: 7405543
In stock – 2-5 days delivery

Description

Zebra DS2208-HC. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, RS-232, RS-485, Keyboard wedge, Wireless range: 10 m. Product colour: White, International Protection (IP) code: IP42. Power source type: DC, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2400 mAh. Weight: 161.6 g, Width: 66 mm, Depth: 99 mm

AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

5 year

Scan & Camera

Scanner type1D/2D
Optical sensor resolution (W x H)640 x 480 pixels
Tilt reading angle-65 - 65°
Pitch reading angle-65 - 65°
Yaw reading angle-65 - 65°
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
Motion tolerance (cm/s)13

Connectivity & Ports

Standard interfacesUSB, RS-232, RS-485, Keyboard wedge
Cables includedMicro-USB

Wireless & Network

Wireless range10 m

Battery & Power

Power source typeDC
Power consumption250 mA
Battery technologyLithium-Ion (Li-Ion)
Battery capacity2400 mAh
Battery life100 h
Charging baseNo
AC adapter output voltage5 V

Dimensions, Weight & Design

Product colourWhite
Weight161.6 g
Width66 mm
Depth99 mm
Height165 mm
Wavelength645 nm

Operating Conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
International Protection (IP) codeIP42

Certifications

Harmonized System (HS) code84716070
Compliance certificatesRoHS

Other specifications

TypeHandheld bar code reader
Sensor typeLED
Connectivity technologyWired
LED indicatorsYes
