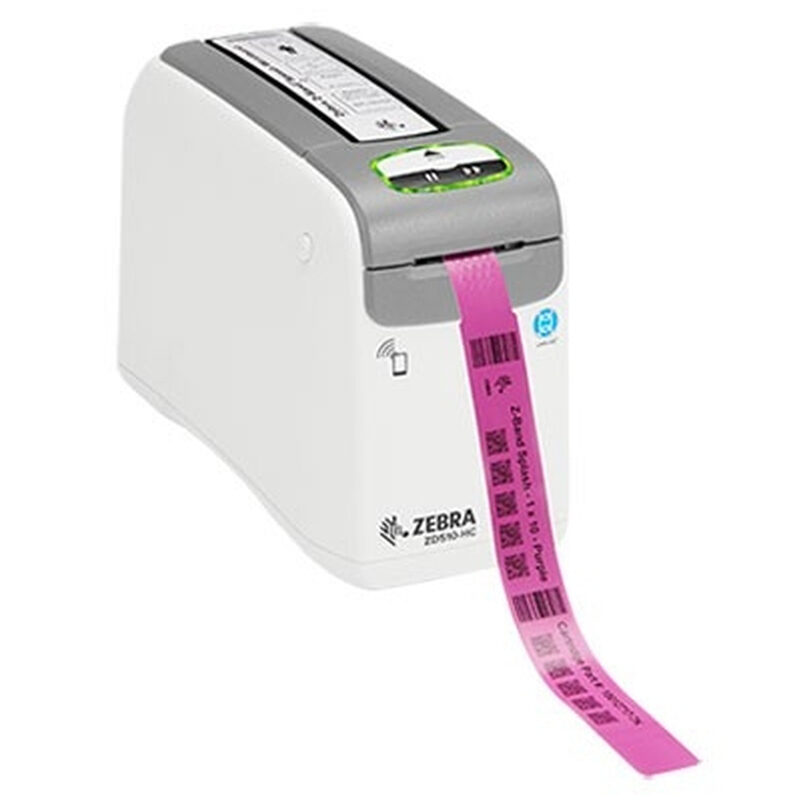

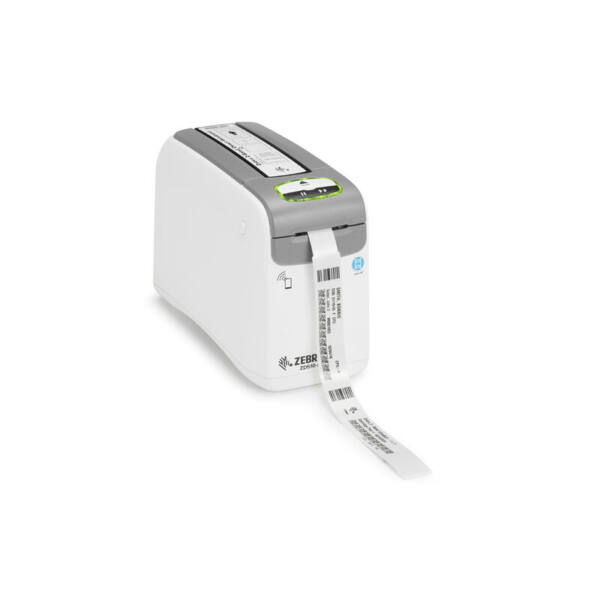

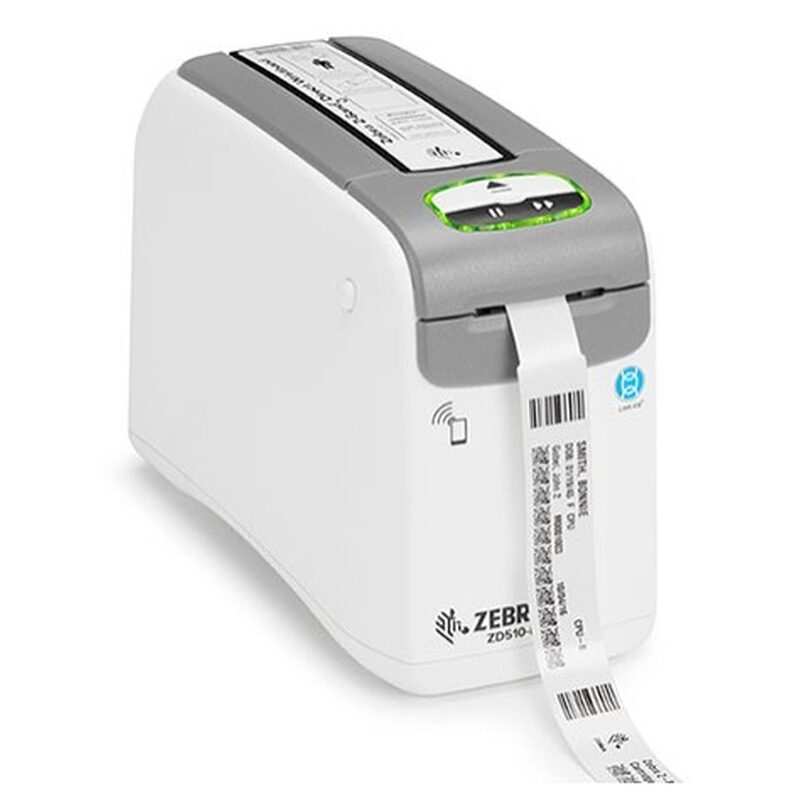

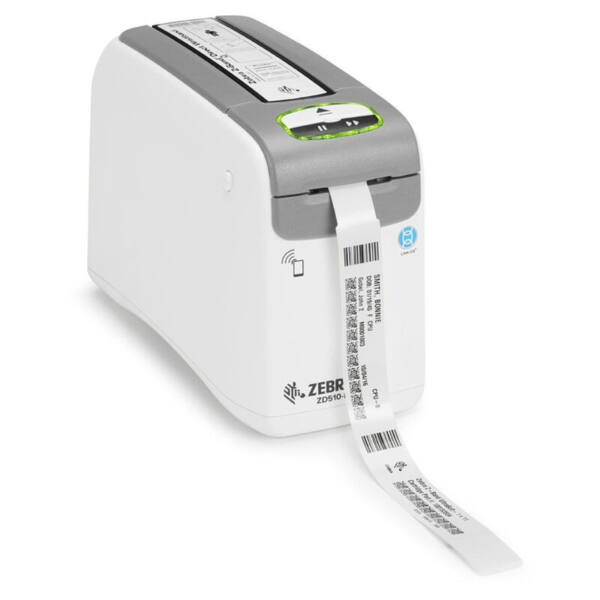

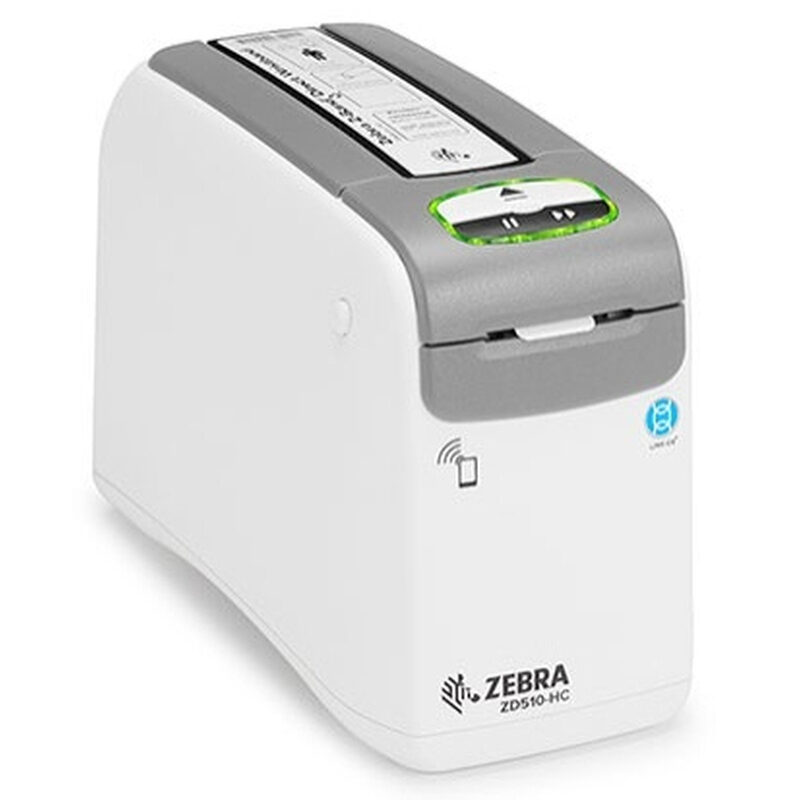

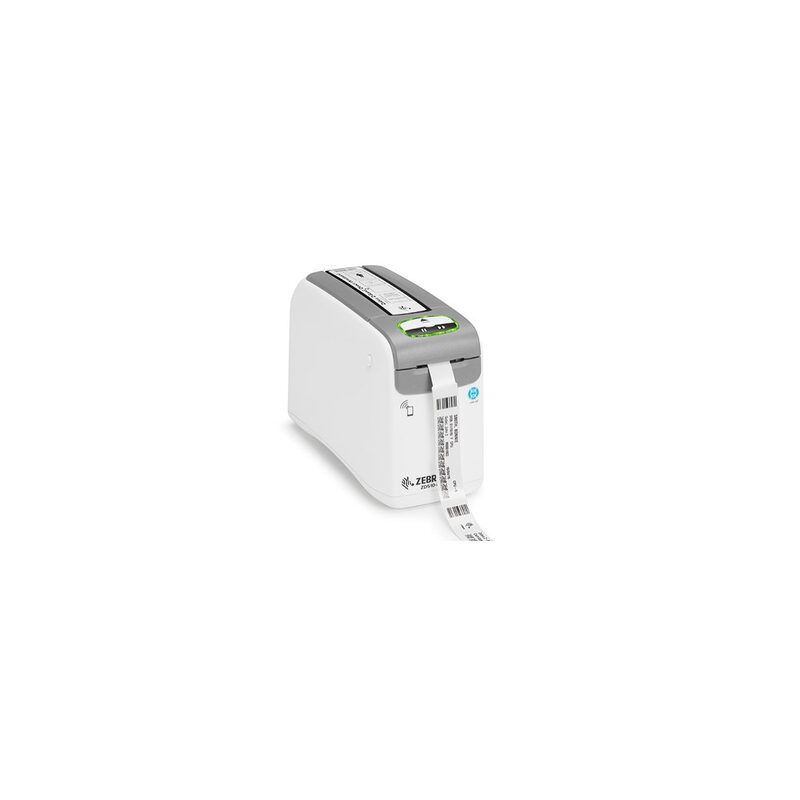

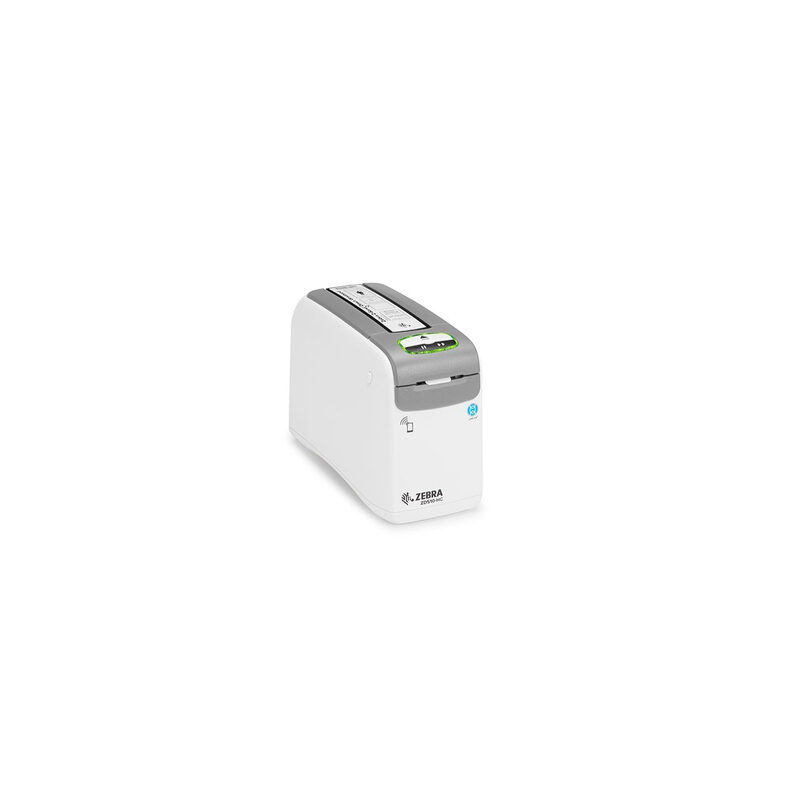

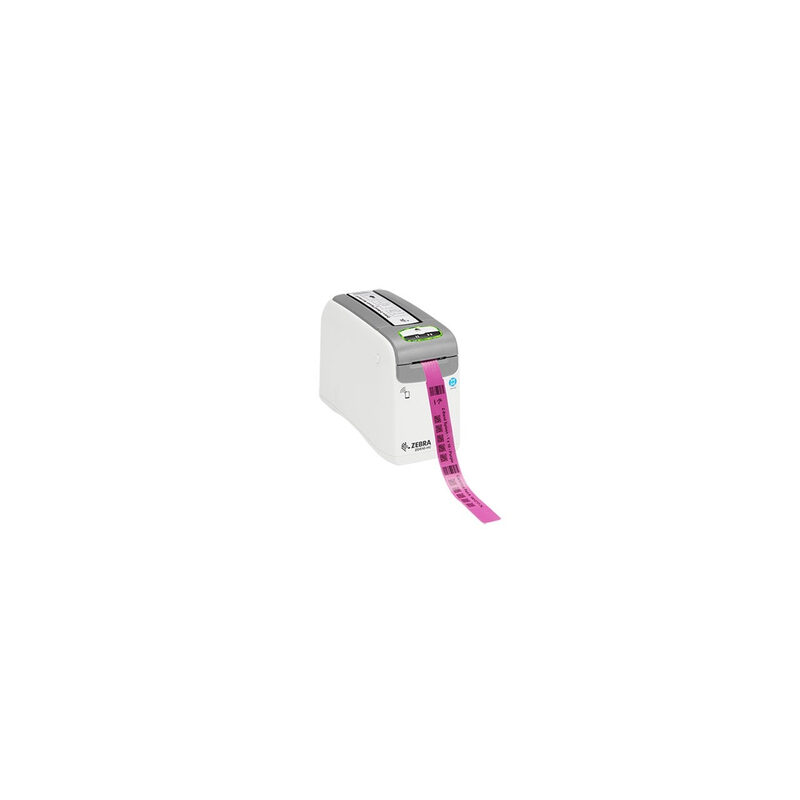

Zebra ZD510 Wristband Printer, Healtcare, 300dpi
HIGHLIGHTS
- Direct thermal
 - 300 x 300 DPI
 - Maximum printing width: 3.02 cm Print speed: 102 mm/sec
 - Built-in barcodes: Logmars, Plessey, MSI, EAN14, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar Limited, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
 - Connectivity technology: Wired & Wireless
 - USB port Ethernet LAN Bluetooth
 - 1.4 kg

- Description
 - Additional information
 - Documents

Description
Zebra ZD510-HC. Print technology: Direct thermal, Maximum resolution: 300 x 300 DPI, Print speed: 102 mm/sec. Connectivity technology: Wired & Wireless. Product colour: White
A WRISTBAND PRINTER THAT SPECIALIZES IN HEALTHCARE
Patient wristbands are the foundation for a safer, more efficient process for delivering care. The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market – Zebra’s Z-Band® wristbands. Offering comprehensive connectivity options, a disinfectant-ready UV-resistant housing and the powerful Print DNA suite of applications, utilities and developer tools, the ZD510-HC increases staff productivity and patient safety. Also capable of printing wristbands for amusement, water-park and entertainment applications, the ZD510-HC is the industry’s easiest to use and most dependable wristband printing solution.
VIRTUALLY NO TRAINING REQUIRED

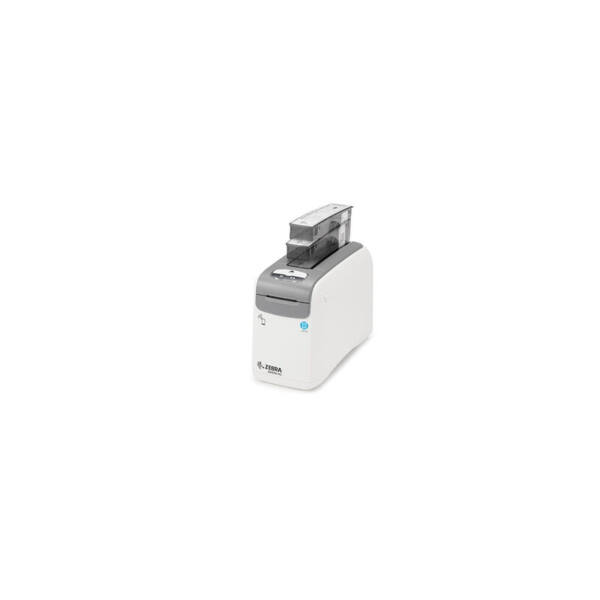

The ZD510-HC is the easiest wristband printer to use on the market. Just insert the wristband cartridge containing Zebra Z-Band wristbands and print. The printer instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality.
EXCEPTIONAL QUALITY WITH ZEBRA Z-BANDS
Designed, produced and rigorously pre-tested, you get optimum image durability and scanning performance with Z-Band wristbands. They are resistant to hand sanitizers and are available in a variety of sizes, softness levels and colors.
EASY TO CLEAN
The ZD510-HC printer’s disinfectant ready UV-resistant housing is designed to handle regular sanitizing with harsh chemicals and UV light, helping prevent the spread of germs and increase patient safety.
TRUST YOUR WRISTBAND PRINTING TO A SPECIALIST
The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market – Zebra’s Z-Band® wristbands. Also capable of printing wristbands for amusement, water-park and entertainment applications, you get dependable wristband printing that increases patient safety and staff productivity.
Additional information
| Print technology | Direct thermal  |

|---|---|
| Maximum resolution | 300 x 300 DPI  |

| Print speed | 102 mm/sec  |

| Maximum printing width | 3.02 cm  |

| Connectivity technology | Wired & Wireless  |

| Ethernet LAN | Yes  |

| Wi-Fi | No  |

| USB port | Yes  |

| Bluetooth | Yes  |

| Product colour | White  |

| Display | No  |

| AC input voltage | 100 – 240 V  |

| AC input frequency | 50 – 60 Hz  |

| Operating relative humidity (H-H) | 20 – 85%  |

| Storage relative humidity (H-H) | 5 – 85%  |

| Operating temperature (T-T) | 4.4 – 40 °C  |

| Storage temperature (T-T) | -40 – 60 °C  |

| Width | 127 mm  |

| Depth | 242 mm  |

| Height | 178 mm  |

| Weight | 1.4 kg  |

| Harmonized System (HS) code | 84433210  |

| Colour | No  |

| USB 2.0 ports quantity | 2  |

| Certification | FCC Part 15, Subpart B, VCCI, RCMCE: EN 55032:2012 B, EN 55024:2010, EN61000-3-2, EN 61000-3-3, CISPR 32:2015CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTLIEC 60601-1:2012  |

| Quantity per pack | 1 pc(s)  |

| Package type | Box  |

| Page description languages | ZBI, ZPL, ZPL II  |

| Built-in barcodes | Logmars, Plessey, MSI, EAN14, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar Limited, Industrial 2/5, Interleaved 2/5, M  |

| Minimum print length | 7.6 cm  |

| Sustainability certificates | ENERGY STAR  |

| Quick start guide | Yes  |

| Optional connectivity | Wireless LAN  |

| AC adapter included | Yes  |

| Built-in display | No  |
