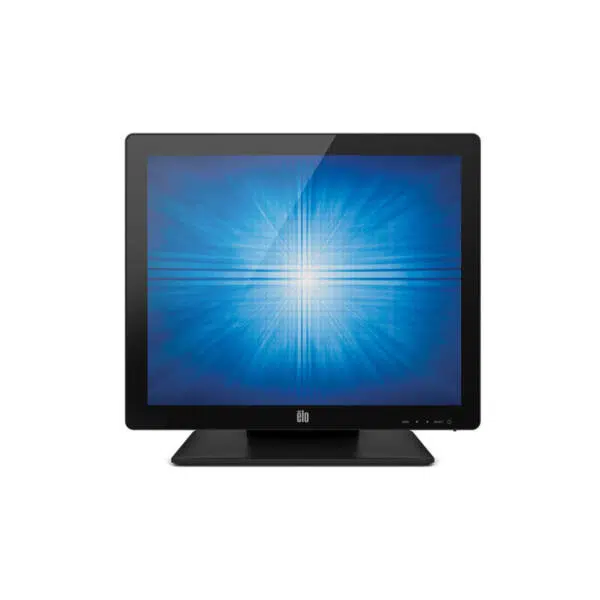

Elo 1517L, Touch Monitor, 15”, black

HIGHLIGHTS

  • Sleek and thin design with built-for-touch reliability
  • Flexible and space-saving
  • 60% Energy savings using LED technology
  • Sealed touchscreen against dirt, dust and liquids
  • Removable base and mounting options including VESA, wall and pole-mounting
  • USB and RS232 serial connections
  • Typical power consumption: 12W, internal and external power options

Elo 1517L, Touch Monitor, 15”, black

6 283,37 kr Ekskl. moms.

15″ TFT LCD (LED) Touchscreen, 1024×768, 4:3, 800:1, AccuTouch ZB, RS-232, USB, Black

Artikelnr: E144246 Varumärke:
Delfi SKU: 7403403
I lager – 2-5 dagars leverans

Beskrivning

Elo Touch Solutions 1517L. Display diagonal: 38.1 cm (15″), Display technology: LED, Display resolution: 1024 x 768 pixels, Display brightness: 240 cd/m², Touchscreen. Product colour: Black

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch

The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.

MSR ready

The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Flexible mounting.

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

Three-year standard warranty

Ytterligare information

Display diagonal

38.1 cm (15")

Display technology

LED

Display resolution

1024 x 768 pixels

Display brightness

240 cd/m²

Touchscreen

Yes

LED backlight

Yes

Touchscreen technology

Resistive

Response time

23 ms

Contrast ratio (typical)

800:1

Viewing angle, horizontal

160°

Viewing angle, vertical

150°

Display number of colours

16.2 million colours

Horizontal scan range

31.5 – 60 kHz

Vertical scan range

56 – 75 Hz

Product colour

Black

VESA mounting

Yes

Screen shape

Flat

Panel mounting interface

75 x 75 mm

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese

Power consumption (typical)

10.5 W

Power consumption (off)

0.5 W

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Width (with stand)

358 mm

Depth (with stand)

197 mm

Height (with stand)

319 mm

Weight (with stand)

4.3 kg

Package width

487 mm

Package depth

231 mm

Package height

485 mm

Package weight

7.3 kg

Cables included

AC, USB, VGA

Operating temperature (T-T)

0 – 40 °C

Operating relative humidity (H-H)

20 – 80%

Storage temperature (T-T)

-20 – 60 °C

Storage relative humidity (H-H)

10 – 90%

Harmonized System (HS) code

85285210

Power supply type

AC

Built-in camera

No

Panel type

TFT

Native aspect ratio

4:3

Number of OSD languages

8

Stand included

Yes

Certification

UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE

Wall mountable

Yes

Built-in microphone

No

On Screen Display (OSD)

Yes

Viewable size, horizontal

22.8 cm

Viewable size, vertical

30.4 cm

Placement supported

Horizontal

Sustainability compliance

Yes

LED indicators

Yes

Compliance certificates

CE, RoHS
