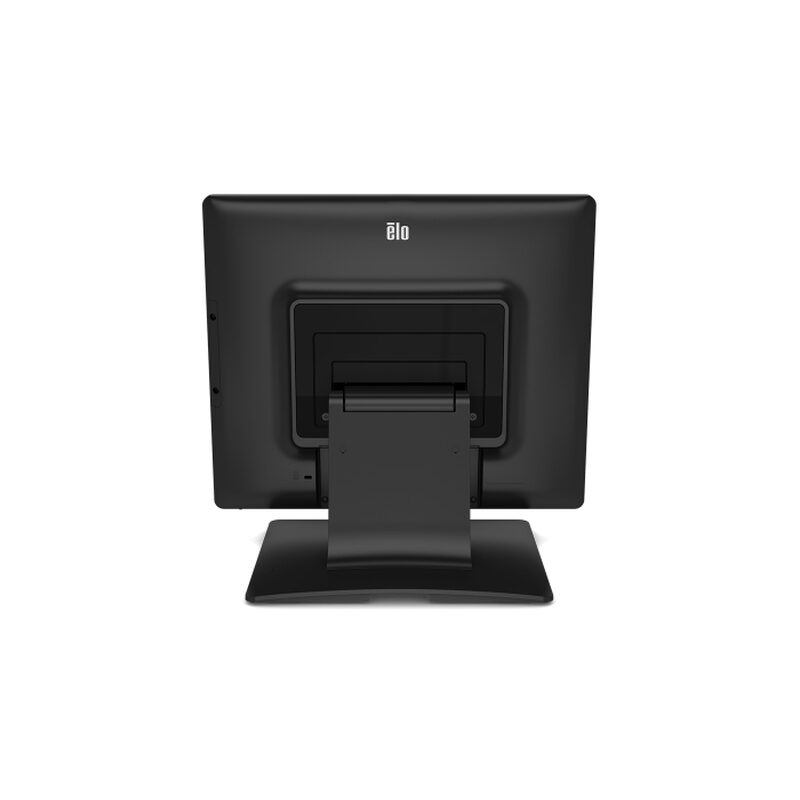

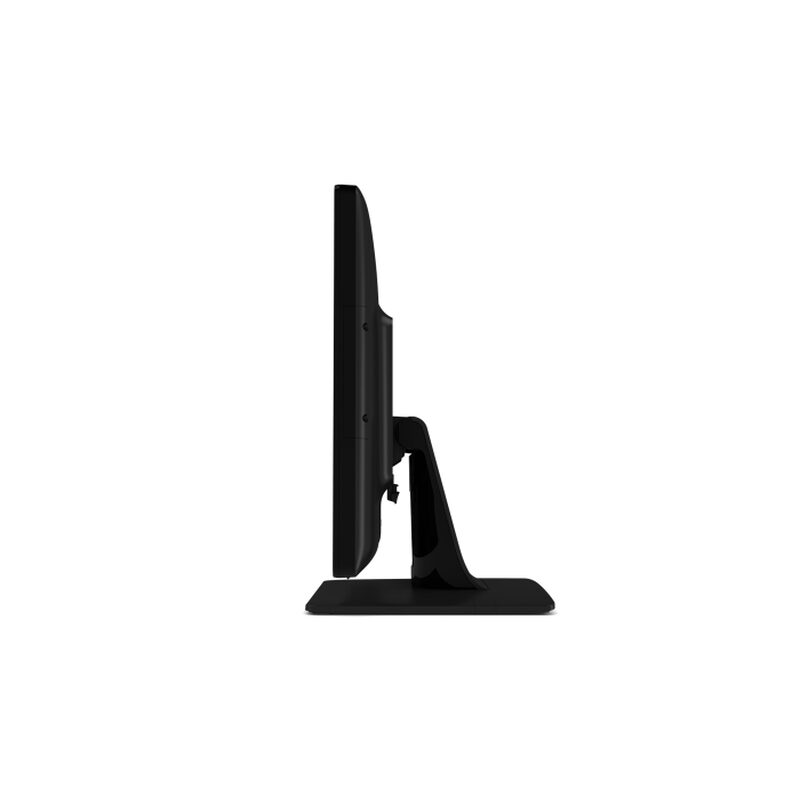

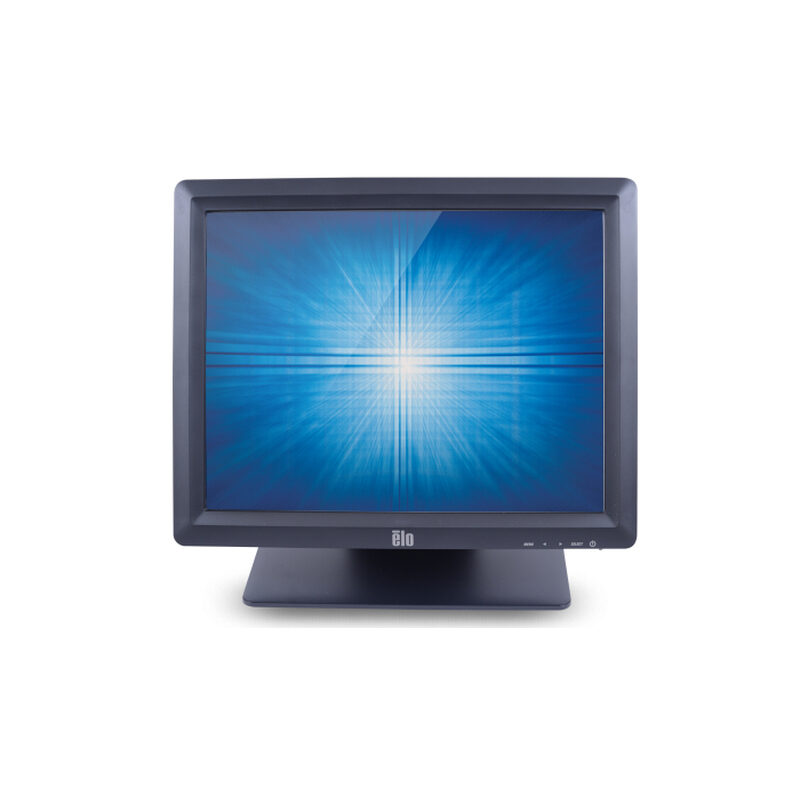

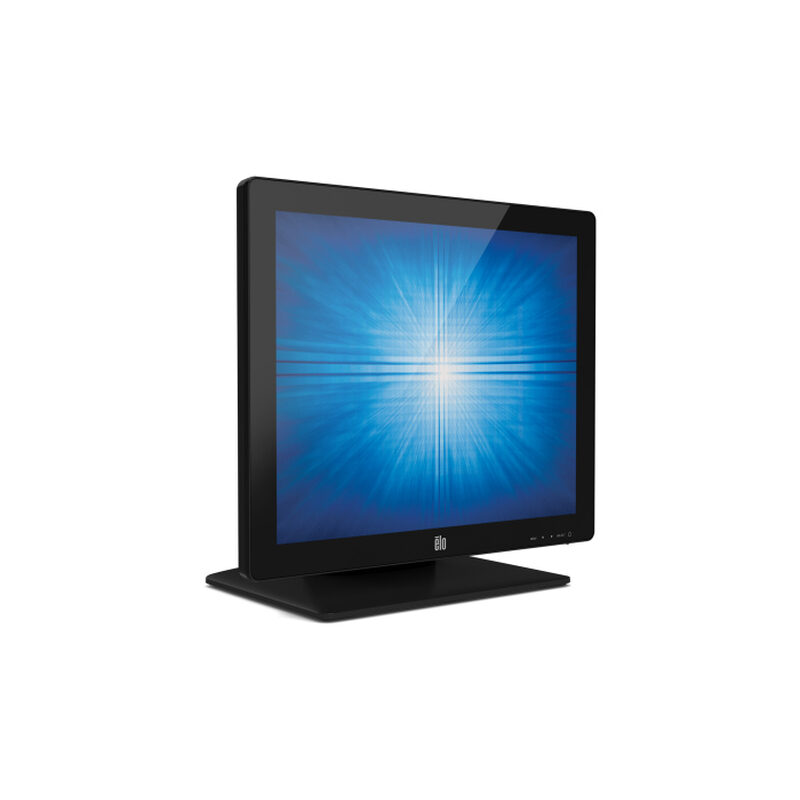

Elo 1517L, Touch Monitor, 15“, black












HIGHLIGHTS
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 12W, internal and external power options
Elo 1517L, Touch Monitor, 15“, black
571,38 € Exkl. MwSt
15″ TFT LCD (LED) Touchscreen, 1024×768, 4:3, 800:1, AccuTouch ZB, RS-232, USB, Black
- Beschreibung
- Zusätzliche Informationen
- Dokumente
Beschreibung
Elo Touch Solutions 1517L. Display diagonal: 38.1 cm (15″), Display technology: LED, Display resolution: 1024 x 768 pixels, Display brightness: 240 cd/m², Touchscreen. Product colour: Black
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Three-year standard warranty
Zusätzliche Informationen
Display diagonal | 38.1 cm (15") |
---|---|
Display technology | LED |
Display resolution | 1024 x 768 pixels |
Display brightness | 240 cd/m² |
Touchscreen | Yes |
LED backlight | Yes |
Touchscreen technology | Resistive |
Response time | 23 ms |
Contrast ratio (typical) | 800:1 |
Viewing angle, horizontal | 160° |
Viewing angle, vertical | 150° |
Display number of colours | 16.2 million colours |
Horizontal scan range | 31.5 – 60 kHz |
Vertical scan range | 56 – 75 Hz |
Product colour | Black |
VESA mounting | Yes |
Screen shape | Flat |
Panel mounting interface | 75 x 75 mm |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese |
Power consumption (typical) | 10.5 W |
Power consumption (off) | 0.5 W |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Width (with stand) | 358 mm |
Depth (with stand) | 197 mm |
Height (with stand) | 319 mm |
Weight (with stand) | 4.3 kg |
Package width | 487 mm |
Package depth | 231 mm |
Package height | 485 mm |
Package weight | 7.3 kg |
Cables included | AC, USB, VGA |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 20 – 80% |
Storage temperature (T-T) | -20 – 60 °C |
Storage relative humidity (H-H) | 10 – 90% |
Harmonized System (HS) code | 85285210 |
Power supply type | AC |
Built-in camera | No |
Panel type | TFT |
Native aspect ratio | 4:3 |
Number of OSD languages | 8 |
Stand included | Yes |
Certification | UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE |
Wall mountable | Yes |
Built-in microphone | No |
On Screen Display (OSD) | Yes |
Viewable size, horizontal | 22.8 cm |
Viewable size, vertical | 30.4 cm |
Placement supported | Horizontal |
Sustainability compliance | Yes |
LED indicators | Yes |
Compliance certificates | CE, RoHS |
