Datalogic TD1100 65 Lite, Black, RS-232/KBW Interface
HIGHLIGHTS
- Black
- Working distance: 15 cm
- Tilt reading angle: -45 - 45°
- Standard interfaces: RS-232, Keyboard wedge
Datalogic TD1100 65 Lite, Black, RS-232/KBW Interface
Corded, RS-232/KBW, Black
409,00kr. Excl. VAT
- Description
- Additional information
Description
Datalogic Touch 65 Lite. Working distance: 15 cm, Wavelength: 640 nm, Tilt reading angle: -45 – 45°. Standard interfaces: RS-232, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP30, Certification: RoHS. Input voltage: 5 V, Power consumption: 100 mA. Weight: 130 g

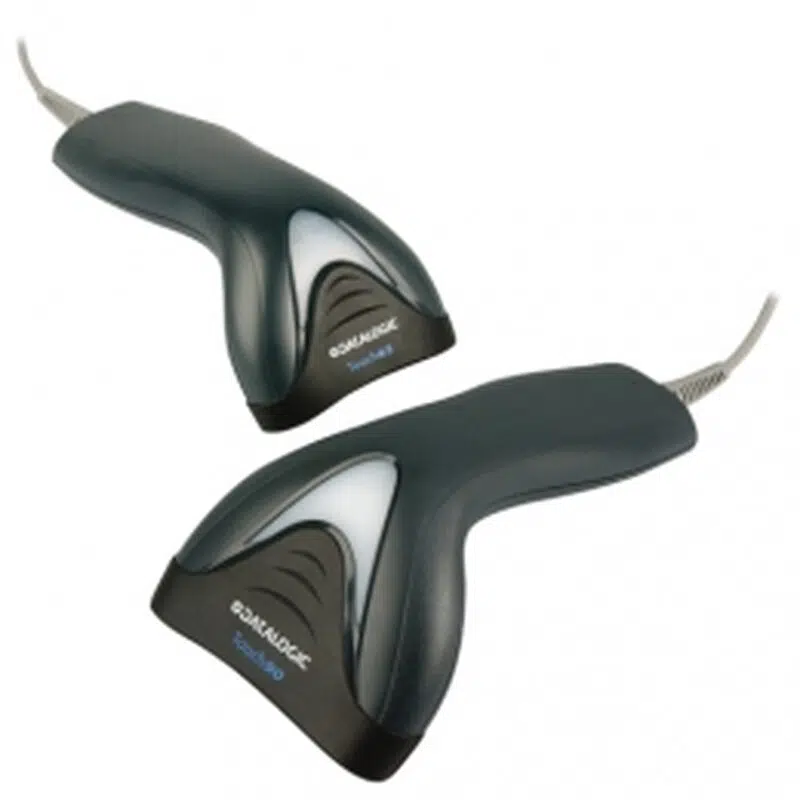

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative ‘read-through’ holder. Cables, power cords and supplies are all sold separately.
5-Year Factory Warranty
Additional information
| Tilt reading angle | -45 – 45° |
|---|---|
| Pitch reading angle | -65 – 65° |
| Yaw reading angle | -70 – 70° |
| Standard interfaces | RS-232, Keyboard wedge |
| Product colour | Black |
| Buzzer | Yes |
| Input voltage | 5 V |
| Power consumption | 100 mA |
| Weight | 130 g |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Harmonized System (HS) code | 84716070 |
| Wavelength | 640 nm |
| International Protection (IP) code | IP30 |
| Tilt angle range | -45 – 45° |
| Bluetooth | No |
| Certification | RoHS |
| Dimensions (WxDxH) | 84 x 58 x 160 mm |
| Working distance | 15 cm |
