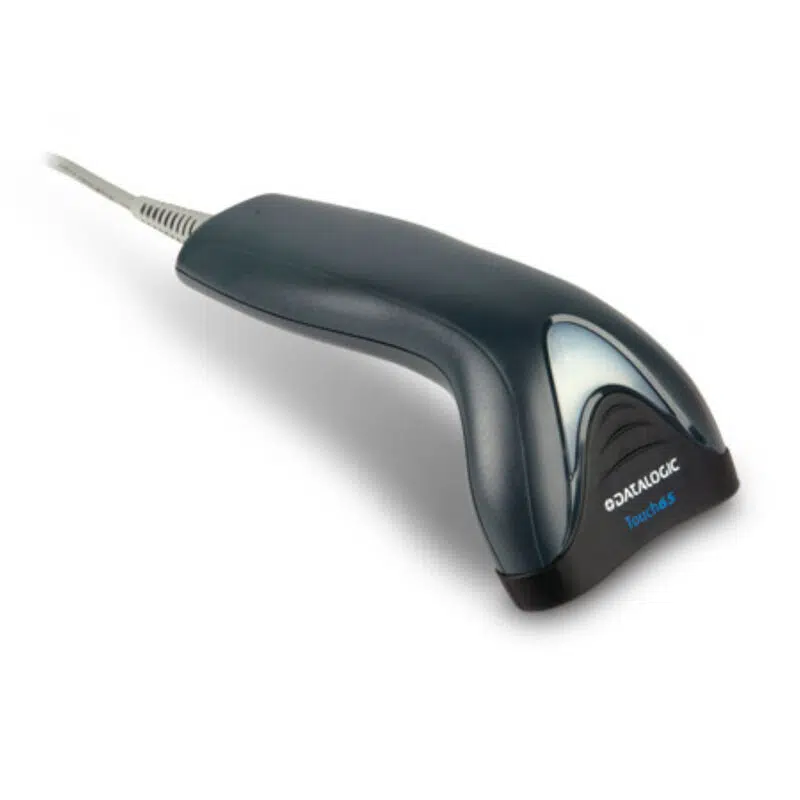

Datalogic TD1100 90 Lite, Black, USB Kit (Includes Scanner, Holder and 90A052065 Cable.)
HIGHLIGHTS
- Black
- Tilt reading angle: -45 - 45°
- Standard interfaces: USB
Datalogic TD1100 90 Lite, Black, USB Kit (Includes Scanner, Holder and 90A052065 Cable.)
Corded, USB Kit w/Scanner, Holder & 90A052044 Cable, Black
468,00kr. Excl. VAT
- Description
- Additional information
Description
Datalogic Touch 90 Lite. Wavelength: 640 nm, Tilt reading angle: -45 – 45°, Pitch reading angle: -65 – 65°. Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP30, Certification: RoHS. Input voltage: 5 V, Power consumption: 100 mA. Weight: 153 g
The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative ‘read-through’ holder. Cables, power cords and supplies are all sold separately.
Scan & Camera
| Tilt reading angle | -45 - 45° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -70 - 70° |
Connectivity & Ports
| Standard interfaces | USB |
Wireless & Network
| Bluetooth | No |
Audio
| Buzzer | Yes |
Processor & Memory
| Input voltage | 5 V |
Battery & Power
| Power consumption | 100 mA |
Dimensions, Weight & Design
| Product colour | Black |
| Weight | 153 g |
| Wavelength | 640 nm |
| Dimensions (WxDxH) | 104 x 67 x 170 mm |
Operating Conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| International Protection (IP) code | IP30 |
Certifications
| Harmonized System (HS) code | 84716070 |
| Certification | RoHS |
Other specifications
| Tilt angle range | -45 - 45° |
