Name: Elo 0704LS, 17.8cm (7''), Projected Capacitive, 10 TP, USB-C, kit, dark grey - E967730 | Delfi
Brand: Elo
SKU: E967730
Price: 2137.00 DKK
Availability: InStock

Elo 0704LS, 17.8cm (7”), Projected Capacitive, 10 TP, USB-C, kit, dark grey

HIGHLIGHTS

Digital signage flat panel Grey
17.8 cm (7") 1280 x 800 pixels LED 400 cd/m²
Touchscreen 60 Hz 35 ms

Elo 0704LS, 17.8cm (7”), Projected Capacitive, 10 TP, USB-C, kit, dark grey

7”, 16:10, 1280 x 800, 60 Hz, 173.06 x 121.56 x 14.6 mm, 320 g

2.137,00kr. Excl. VAT

SKU: E967730

In stock – 2-5 days delivery

Description
Additional information
Documents

Description

Elo Touch Solutions 0704LS. Product design: Digital signage flat panel. Display diagonal: 17.8 cm (7″), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 400 cd/m², Touchscreen. Product colour: Grey

Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 7-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding – all with brilliant display clarity.

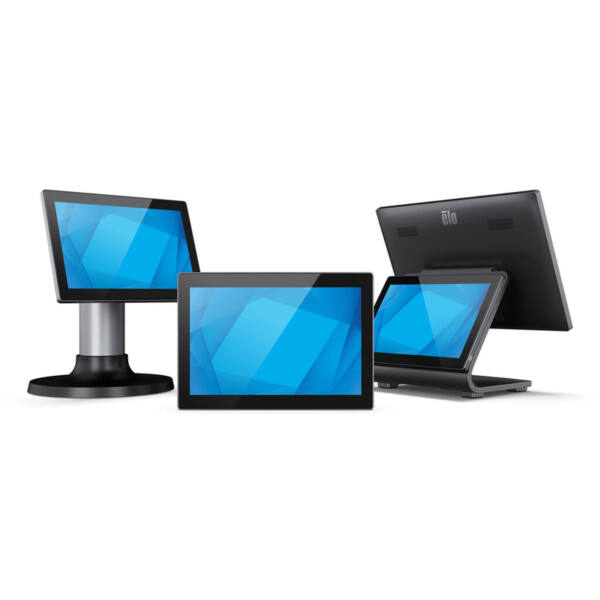

Available in a range of sizes from 7- to 15-inch.

Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.

A clean slate for touch experiences.

The perfect pairing for your POS terminal.
The 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.

Get peace of mind with EloCare.SM
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.

Scan & Camera

Horizontal scan range

30 - 60 kHz

Display

Display diagonal	17.8 cm (7″)
Display technology	LED
Display resolution	1280 x 800 pixels
Display brightness	400 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Contrast ratio (typical)	800:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Display number of colours	16.7 million colours
VESA mounting	Yes
Screen shape	Flat
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Aspect ratio	16:10
Panel type	TFT-LCD
Display diagonal (metric)	178 cm
Number of OSD languages	8
On Screen Display (OSD)	Yes
Energy efficiency class (SDR)	C
Energy efficiency scale	A to G
Anti-glare screen	Yes
Native refresh rate	60 Hz
Active display area (W x H)	149.76 x 93.6 mm
Display width	173.1 mm
Display depth	14.6 mm
Display height	121.6 mm
Display weight	320 g
Number of displays	1

Connectivity & Ports

Cables included	USB Type-C
USB port	Yes
Ethernet LAN	No
USB connector type	USB Type-C

Audio

Built-in speaker(s)

Processor & Memory

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Battery & Power

Power consumption (typical)	4.8 W
Power consumption (off)	0.15 W
Power consumption (sleep)	0.8 W

Dimensions, Weight & Design

Product colour	Grey
Package width	232 mm
Package depth	71 mm
Package height	168 mm
Package weight	670 g
Product design	Digital signage flat panel
Quantity per pack	1 pc(s)

Operating Conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95%
