Elo 1523L 15-inch LCD (LED backlight) Desktop, IntelliTouch
HIGHLIGHTS
- Black
- 38.1 cm (15") 1024 x 768 pixels 225 cd/m²
- Touchscreen 60 Hz 25 ms
- Built-in speaker(s)
Elo 1523L 15-inch LCD (LED backlight) Desktop, IntelliTouch
1523L, Desktop Touchmonitor, iTouch Plus, Multi-touch, 15″, 1024 x 768, 160/140, 700:1, Mini D-Sub, DVI-D
5.399,00kr. Excl. VAT
- Description
- Additional information
Description
Elo Touch Solutions 1523L. Display diagonal: 38.1 cm (15″), Display resolution: 1024 x 768 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black
The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable “drift-free” operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
– Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
– Integrated cable management
– iTouch Plus surface acoustic wave (SAW) touchscreen couples zero-bezel design with multi-touch
– Dual position stand – single hinge with high/low settings and tilt functionality
– Desktop, wall or VESA mounting
– Internal speakers
3 Years
Display
| Display diagonal | 38.1 cm (15″) |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 225 cd/m² |
| Touchscreen | Yes |
| LED backlight | Yes |
| Touchscreen technology | Surface acoustic wave |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Display number of colours | 16.2 million colours |
| Screen shape | Flat |
| Panel mounting interface | 75 x 75 mm |
| Aspect ratio | 4:3 |
| Display viewable area (HxV) | 304 x 228 mm |
| Native aspect ratio | 4:3 |
| Supported graphics resolutions | 720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| On Screen Display (OSD) | Yes |
| Native refresh rate | 60 Hz |
Connectivity & Ports
| DVI port | Yes |
| DVI-D ports quantity | 1 |
Wireless & Network
| Wall mountable | Yes |
Audio
| Built-in speaker(s) | Yes |
Dimensions, Weight & Design
| Product colour | Black |
| Width (with stand) | 358 mm |
| Depth (with stand) | 318 mm |
| Height (with stand) | 199 mm |
| Weight (with stand) | 4.44 kg |
| Dimensions (W x D x H) with stand | 358 x 318 x 199 mm |
Operating Conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Mean time between failures (MTBF) | 50000 h |
Certifications
| Harmonized System (HS) code | 85285210 |
Other specifications
| Response time | 25 ms |
Related popular products
Delfi 15" Touch PoS Monitor, True-Flat, P-CAP,

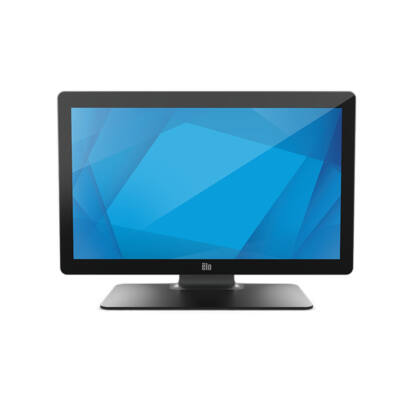

Elo 2295L 21.5-inch wide FHD LCD WVA (400nit LED Backlight),

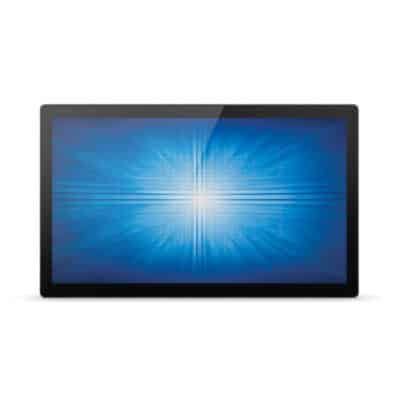

Elo 1590L 15-inch LCD (LED Backlight), Open Frame, HDMI, VGA

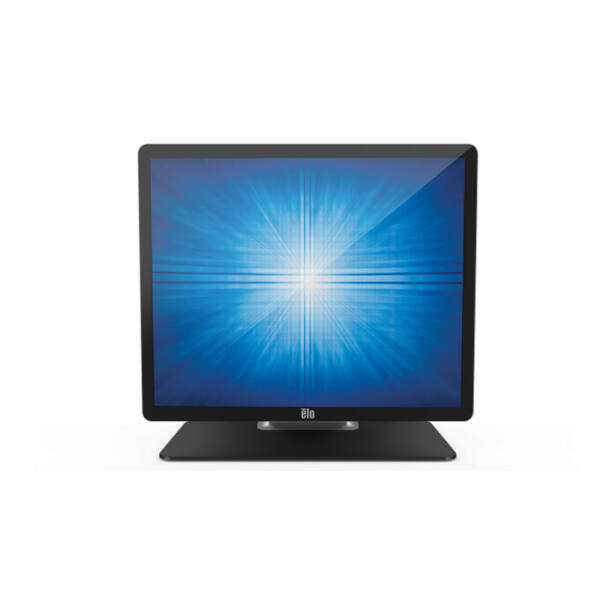

Elo 1903LM, 48,3cm (19''), Projected Capacitive, 10 TP, White color

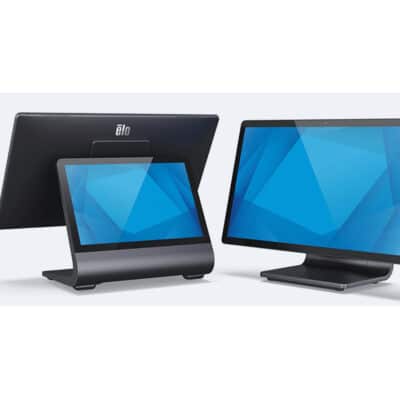

Elo I-Series 2.0, 54,6cm (21,5''), Projected Capacitive, SSD, 10 IoT Enterprise, black
