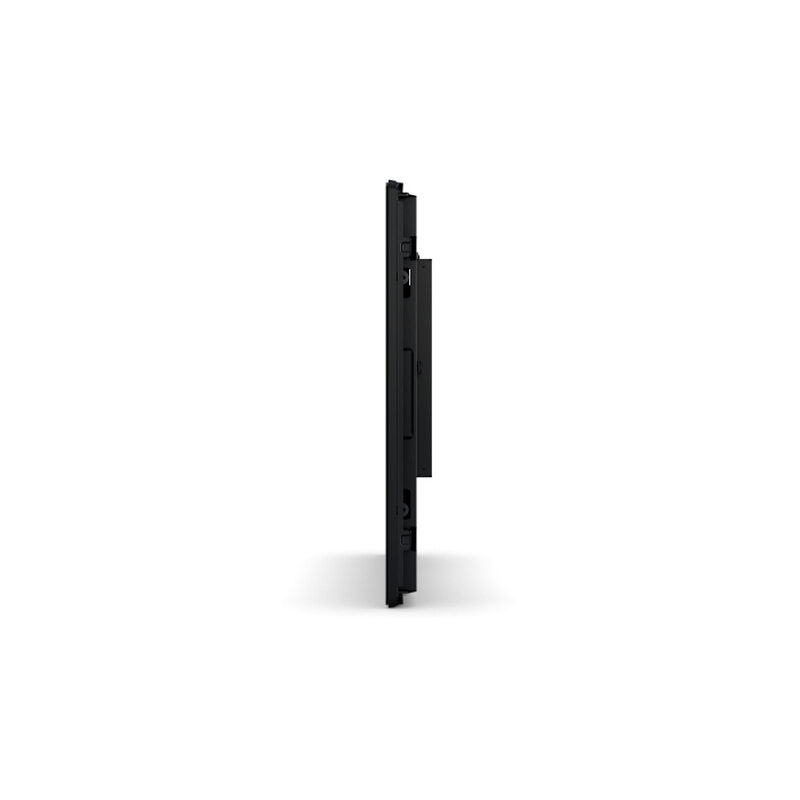

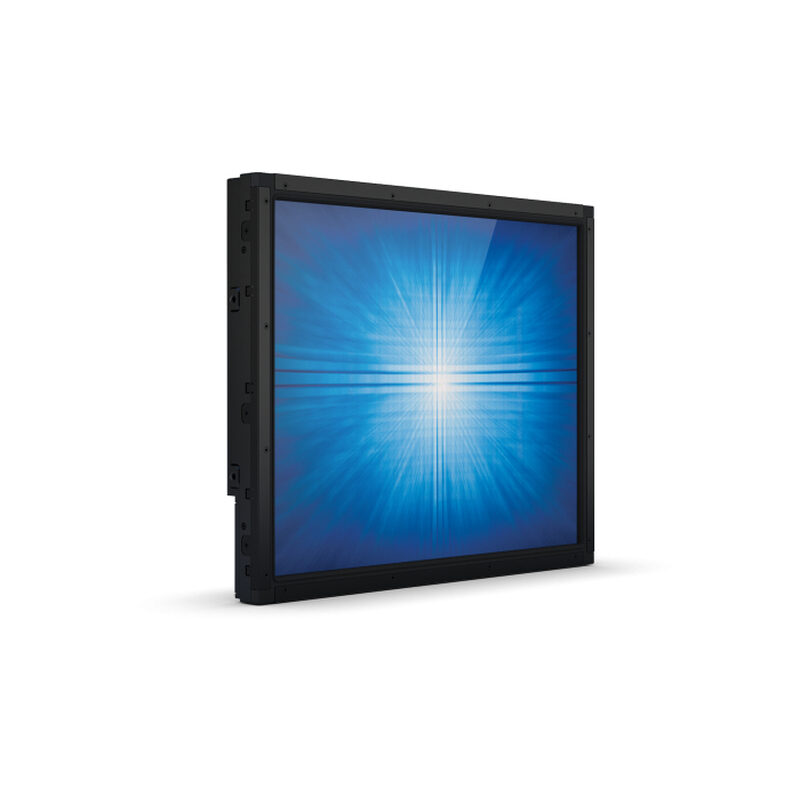

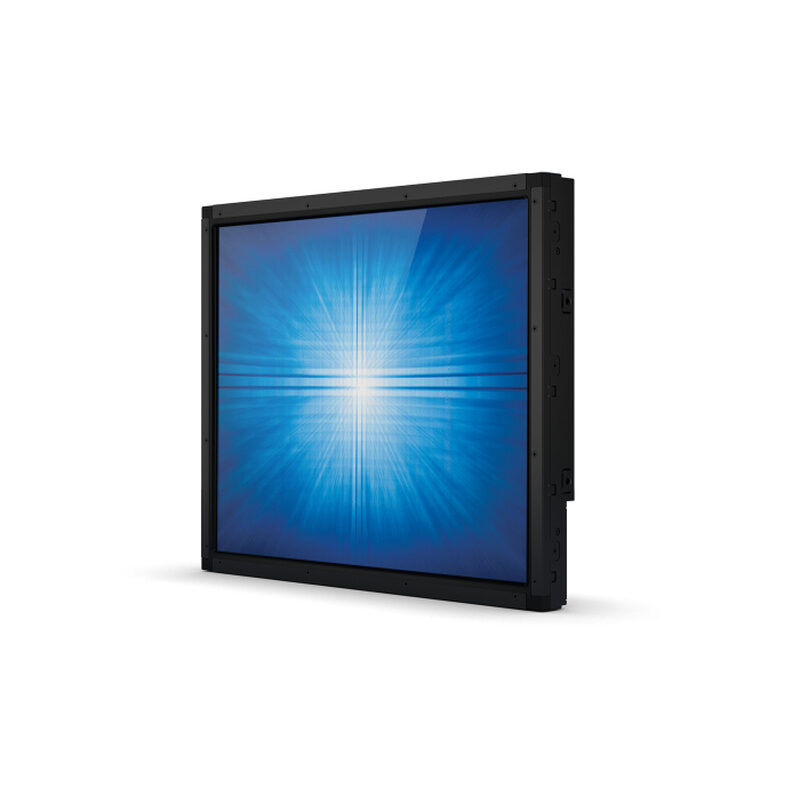

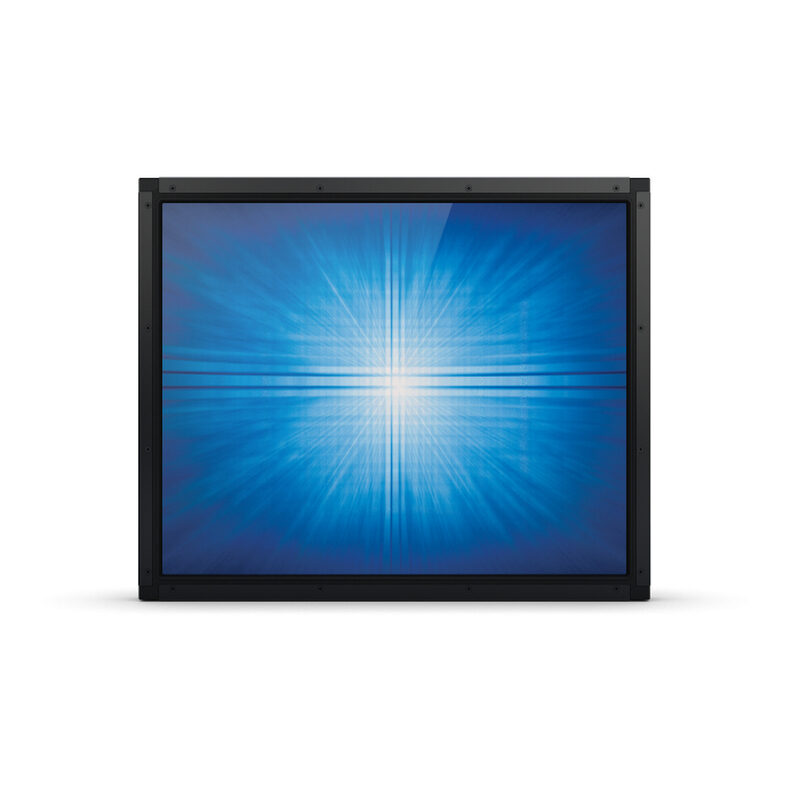

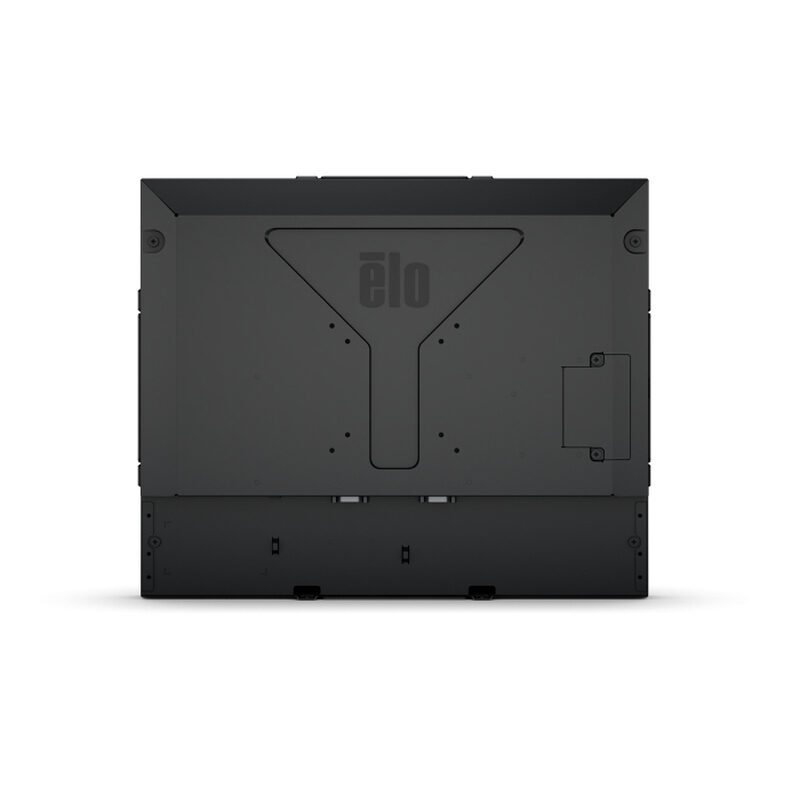

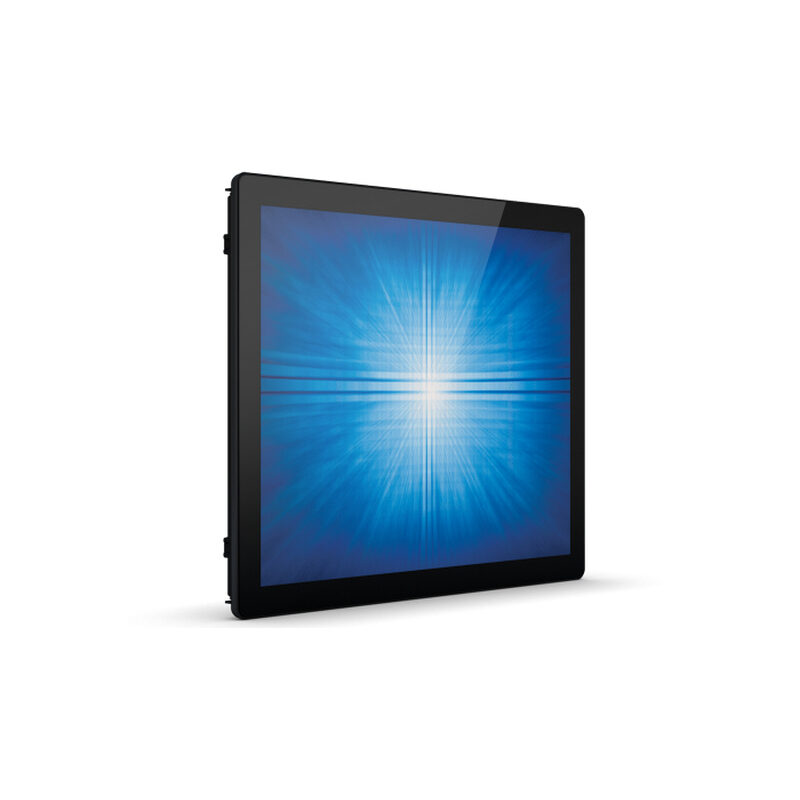

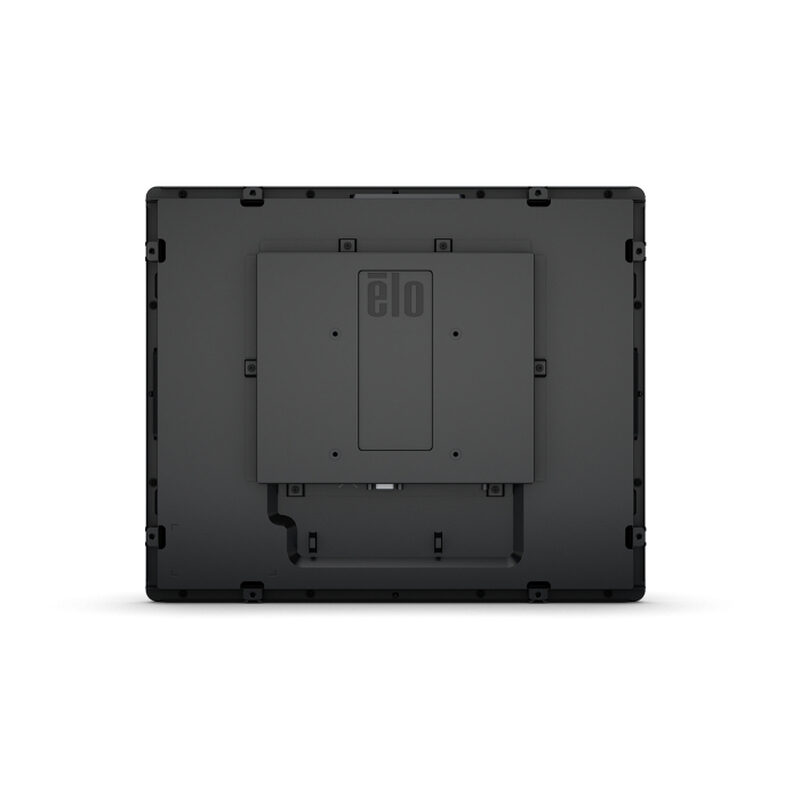

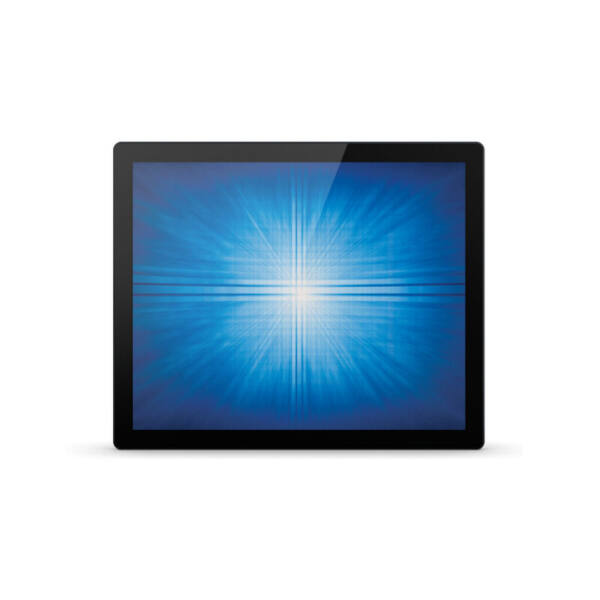

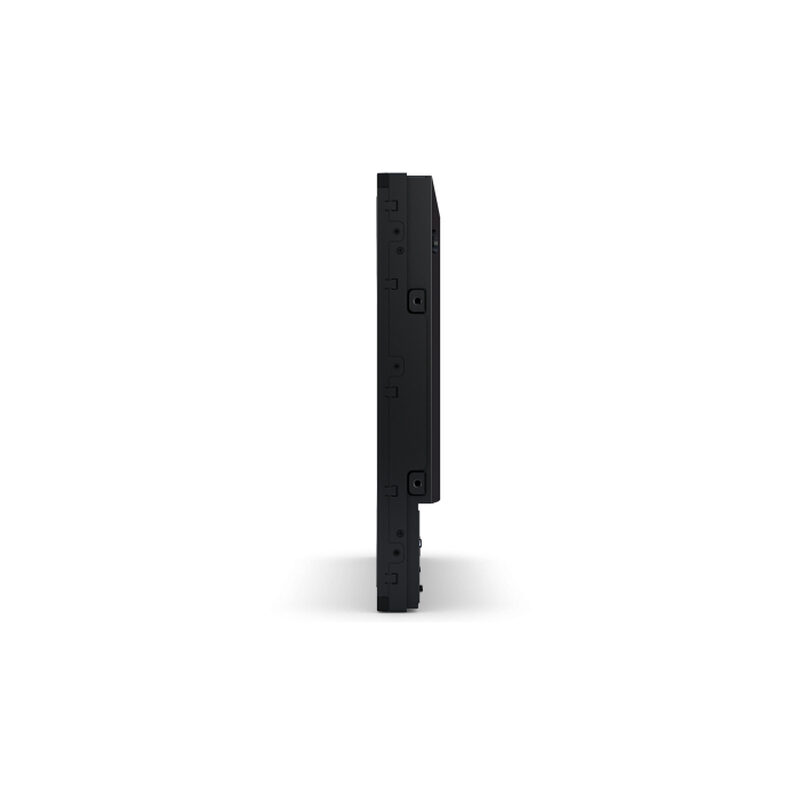

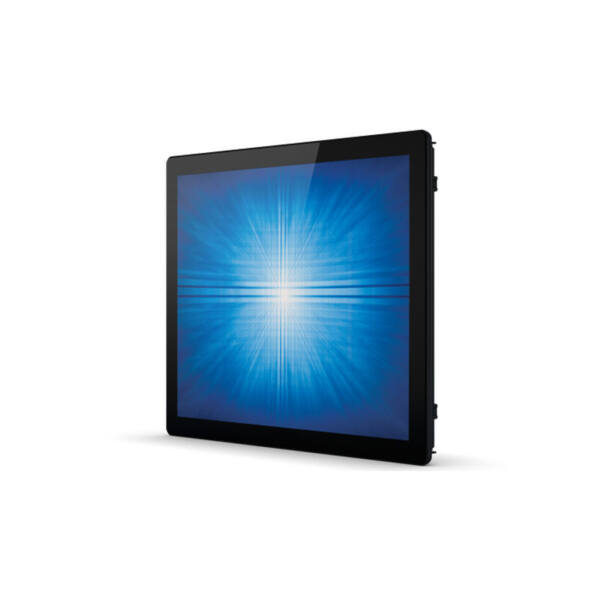

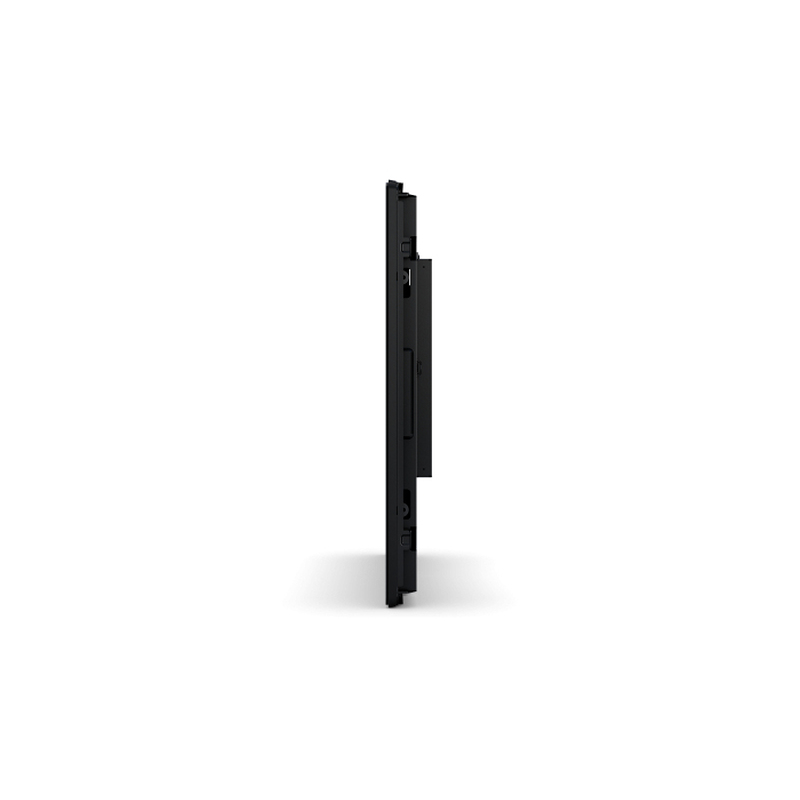

Delfi Touch Monitor, 19″, (Open Frame Monitor)
HIGHLIGHTS
- Black
- 48.3 cm (19") 1280 x 1024 pixels LCD 225 cd/m²
- Touchscreen 5 ms
Delfi Touch Monitor, 19″, (Open Frame Monitor)
19″, 1280 x 1024, 5 ms, TFT-LCD, 1000:1, 5:4, LED backlight, HDMI, DisplayPort, VGA, Black
522,00 € Excl. VAT
- Description
- Additional information
- Documents
Description
Elo Touch Solutions Open Frame Touchscreen. Display diagonal: 48.3 cm (19″), Display technology: LCD, Display resolution: 1280 x 1024 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black
The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
3 year
Scan & Camera
| Built-in camera | No |
Display
| Display diagonal | 48.3 cm (19″) |
| Display technology | LCD |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 225 cd/m² |
| Touchscreen | Yes |
| LED backlight | Yes |
| Touchscreen technology | Surface acoustic wave |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| HDMI ports quantity | 1 |
| VESA mounting | Yes |
| Screen shape | Flat |
| Panel mounting interface | 75 x 100 mm |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Aspect ratio | 5:4 |
| Display viewable area (HxV) | 376.32 x 301.06 mm |
| Panel type | TFT |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA) |
| Number of OSD languages | 8 |
| DisplayPorts quantity | 1 |
| Backlight type | LED |
Connectivity & Ports
| Cables included | HDMI, LAN (RJ-45), USB, VGA |
Wireless & Network
| Wall mountable | Yes |
Processor & Memory
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Battery & Power
| Power consumption (typical) | 22 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.5 W |
| Power supply type | DC |
Dimensions, Weight & Design
| Product colour | Black |
| Width (with stand) | 414.7 mm |
| Depth (with stand) | 342.7 mm |
| Height (with stand) | 50 mm |
| Package weight | 7 kg |
| Weight (without stand) | 4.6 kg |
| Dimensions (W x D x H) with stand | 414.7 x 342.7 x 50 mm |
| Height (without stand) | 348.1 mm |
| Depth (without stand) | 40.7 mm |
Operating Conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Mean time between failures (MTBF) | 50000 h |
| Operating altitude | 0 - 3.048 m |
| Non-operating altitude | 0 - 12.192 m |
Certifications
| Harmonized System (HS) code | 85285210 |
Other specifications
| Response time | 5 ms |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
