Honeywell Eclipse 5145 Scanning, RS232 Kit: black scanner, EU power supply,
HIGHLIGHTS
- Handheld bar code reader Black
- Scanner type: 1D Sensor type: Laser
- Working distance: 150 cm
- Tilt reading angle: 0 - 52°
- Wired Standard interfaces: RS-232
- Power source type: DC
Honeywell Eclipse 5145 Scanning, RS232 Kit: black scanner, EU power supply,
451,00kr. Excl. VAT
MS5145 Eclipse, black
- Description
- Additional information
- Documents
Description

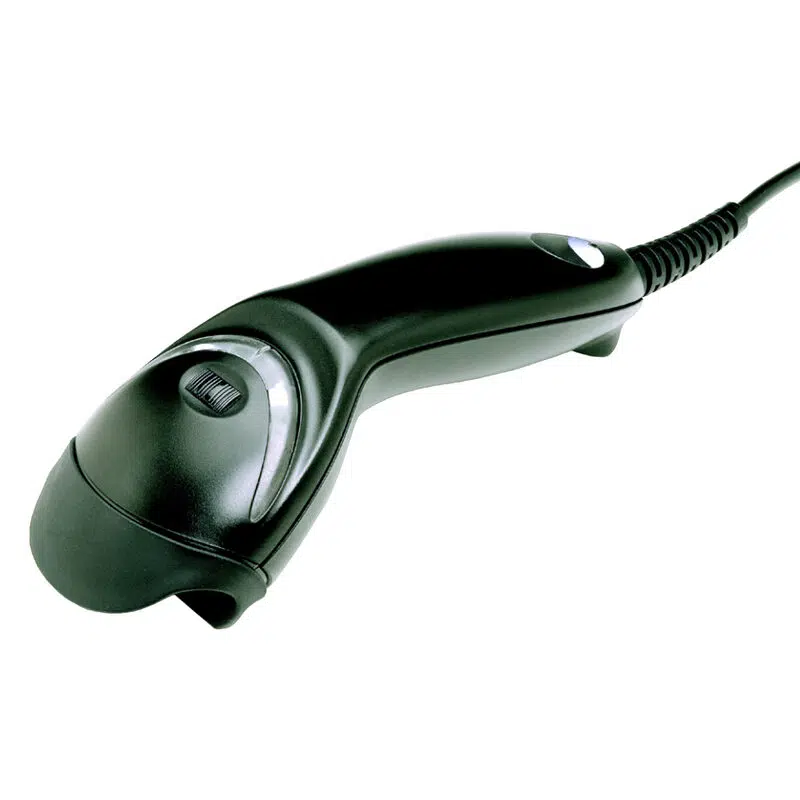

Honeywell MS5145 Eclipse. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, Cable length: 2.1 m. Product colour: Black, Certification: 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B. Power source type: DC, Power consumption (typical): 0.672 W, Input voltage: 5 V. Weight: 100 g, Width: 63 mm, Depth: 169 mm
The MS5145 Eclipse is a single-line, hand-held laser scanner. Honeywell’s patented CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
CodeGate: Ideal for menu scanning applications
CodeSense: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected
Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit
Flash ROM: Update firmware from any PC via MetroSet2 software provided by Metrologic
OPOS and JPOS system compatible: Easily adaptable to any end-user system environment
3 years
Additional information
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D |
| Sensor type | Laser |
| Light levels (direct sunlight) | 0 – 4842 lx |
| Tilt reading angle | 0 – 52° |
| Pitch reading angle | 0 – 68° |
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Cable length | 2.1 m |
| Product colour | Black |
| LED indicators | Yes |
| Power source type | DC |
| Power consumption (typical) | 0.672 W |
| Input voltage | 5 V |
| Power consumption | 675 mA |
| Weight | 100 g |
| Width | 63 mm |
| Depth | 169 mm |
| Height | 51 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Harmonized System (HS) code | 84716070 |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Wavelength | 650 nm |
| Certification | 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B |
| Read rate (max) | 42 reads/s |
| Working distance | 150 cm |
| Compliance certificates | RoHS |
