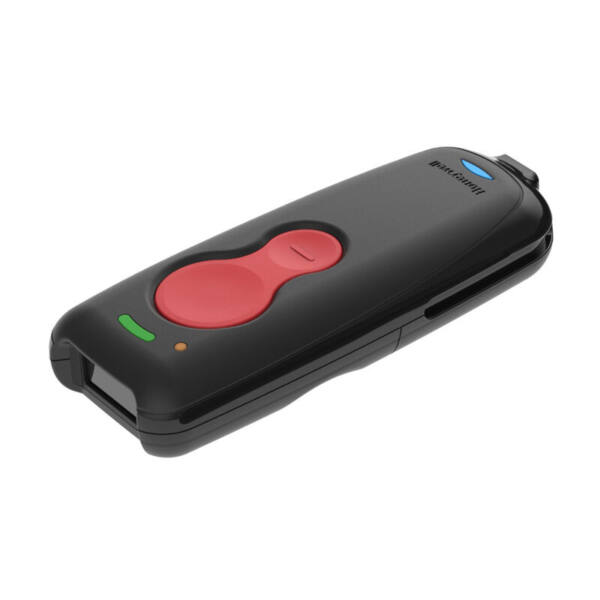

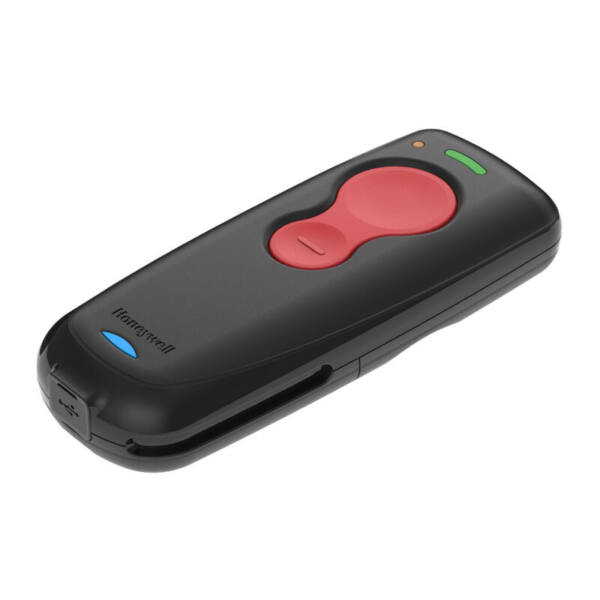

Honeywell KIT, 1602G 1D, BLACK, USB, MFi certification
HIGHLIGHTS
- Handheld bar code reader Plastic Black
- Scanner type: 1D/2D
- Aztec Code, Codablock, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
- Wireless Standard interfaces: Bluetooth, USB
- Power source type: Battery Lithium-Ion (Li-Ion) 750 mAh
- Description
- Additional information
- Documents
Description
Honeywell Voyager 1602g. Type: Handheld bar code reader, Scanner type: 1D/2D, 2D (matrix & stacked) barcodes supported: Aztec Code, Codablock, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code. Connectivity technology: Wireless, Standard interfaces: Bluetooth, USB, Data transfer rate: 1 Mbit/s. Product colour: Black, Housing material: Plastic, International Protection (IP) code: IP42. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 750 mAh. Weight: 100 g, Width: 48 mm, Depth: 22 mm
Looking for the perfect scanning companion for your tablet-based retail point-of-sale and field service applications? The affordable Voyager™ 1602g wireless scanner is the one. It packs high-performance area-imaging technology into an elegant and pocketable form factor that makes scanning easy and – dare we say – fun.
Full-Size Performance
Features the same performance area-imaging engine found in our full-size scanners, so you can scan virtually all 1D and 2D barcodes with ease.
A Mobile Marketing Enabler
Lets you scan barcodes off smartphone screens – mobile coupons, e-tickets, digital wallets, and digital loyalty cards.
Ergonomically Designed
Contoured and elegant design, over-sized scan button, and light weight make scanning fun.
Efficient Wireless Performance
Bluetooth® wireless technology provides freedom of movement up to 10 m (33 ft) from host device.
User-Replaceable Battery
Rated for more than 2,250 scans on a single charge; rechargeable over standard microUSB.
3 years
Scan & Camera
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code |
| Motion tolerance (cm/s) | 10 |
| Optical sensor resolution | 640 pixels |
Connectivity & Ports
| Standard interfaces | Bluetooth, USB |
| Number of batteries supported | 1 |
| USB version | 2.0 |
| USB 2.0 ports quantity | 1 |
| Data transfer rate | 1 Mbit/s |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, Windows Mobile, iOS |
Wireless & Network
| Wireless range | 10 m |
| Bluetooth version | 2.1+EDR |
| Operating frequency | 2400 - 2500 MHz |
Processor & Memory
| Programming function | Yes |
Battery & Power
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 750 mAh |
| Charging time | 3 h |
| Battery life | 12 h |
| Battery voltage | 3.7 V |
Dimensions, Weight & Design
| Product colour | Black |
| Housing material | Plastic |
| Weight | 100 g |
| Width | 48 mm |
| Depth | 22 mm |
| Height | 120 mm |
Operating Conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| International Protection (IP) code | IP42 |
Certifications
| Harmonized System (HS) code | 84716070 |
Other specifications
| Type | Handheld bar code reader |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Connectivity technology | Wireless |
| LED indicators | Yes |
| Keys quantity | 2 keys |
| Number of reads per charge | 2250 |
| PC connection | USB 2.0 |
