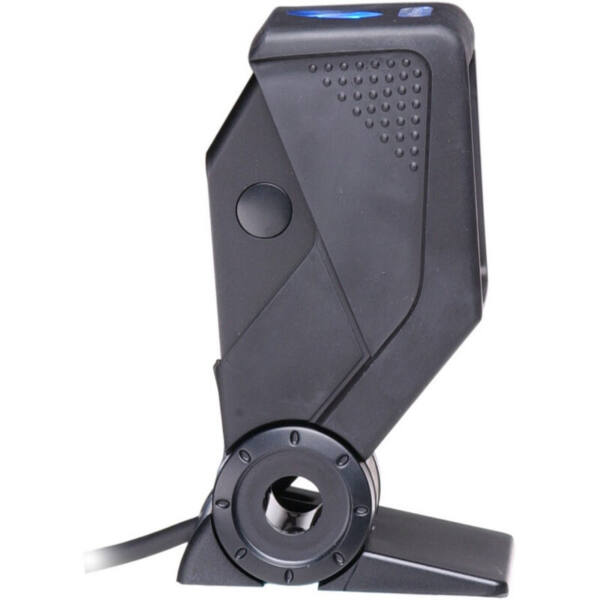

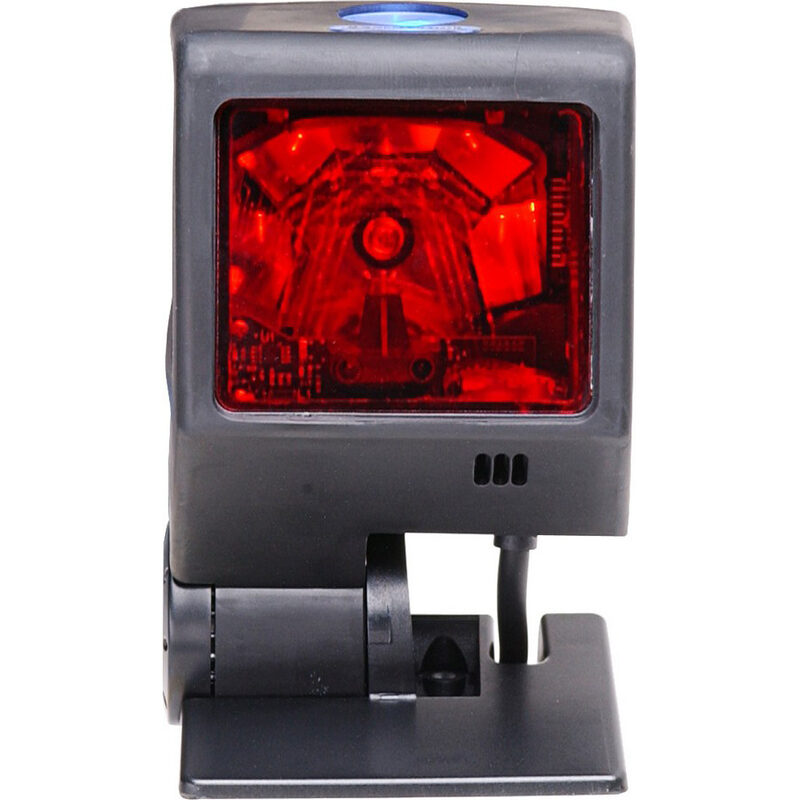

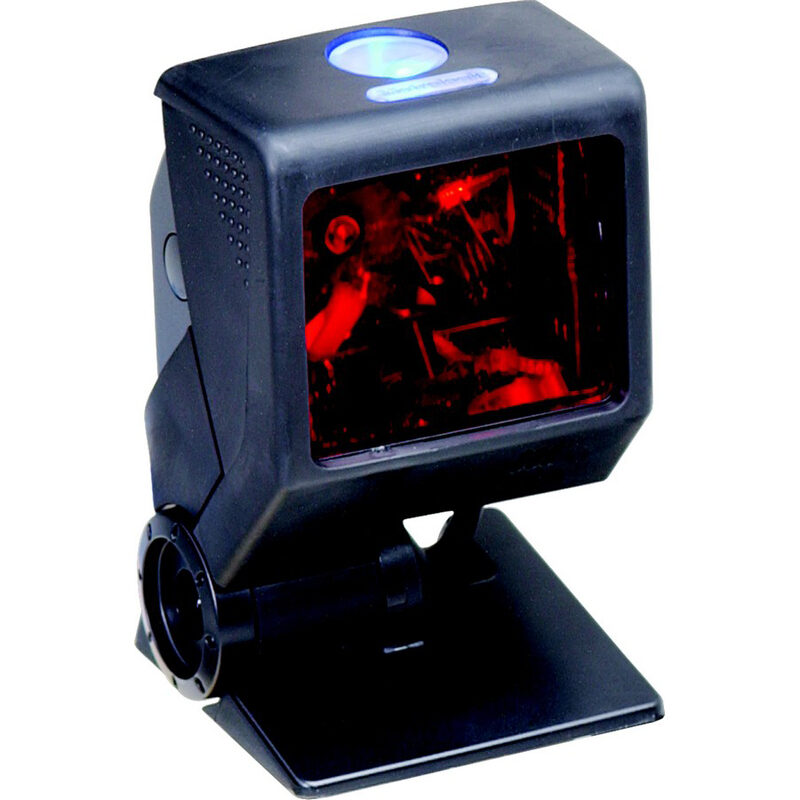

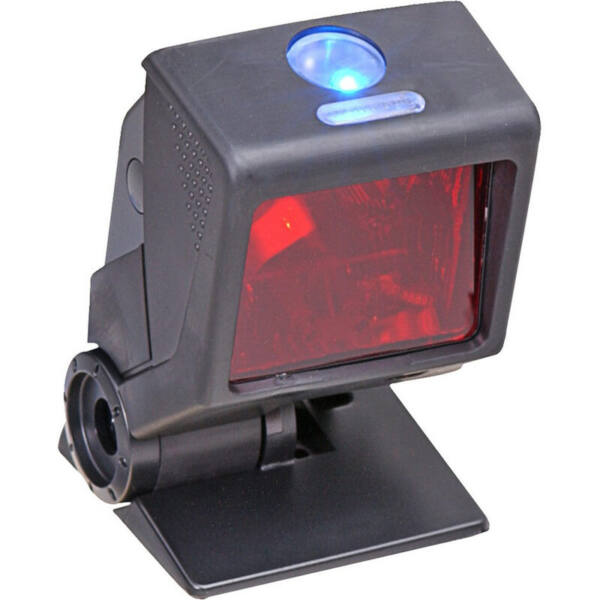

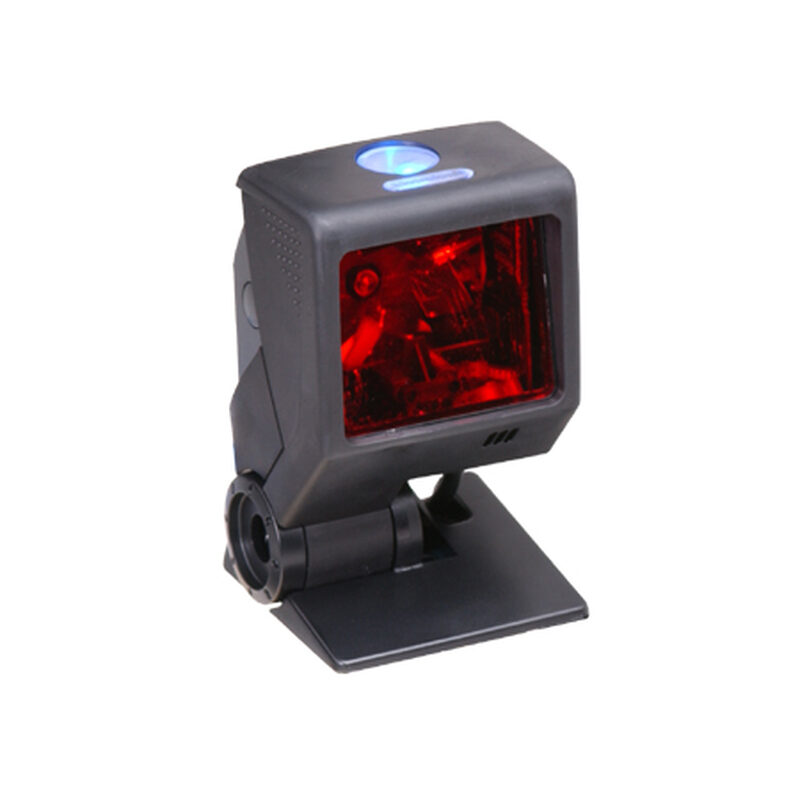

Honeywell Quantum T, Scanner, USB, 1D, Black
HIGHLIGHTS
- Fixed bar code reader Black
- Sensor type: Laser
- GS1-128 (UCC/EAN-128)
- Tilt reading angle: 0 - 360°
- Wired Standard interfaces: USB
- Power source type: AC
Honeywell Quantum T, Scanner, USB, 1D, Black
Quantum MS-3580, USB
264,00 € Excl. VAT
- Description
- Additional information
- Documents
Description
Honeywell MS3580 Quantum T. Type: Fixed bar code reader, Sensor type: Laser, Linear (1D) barcodes supported: GS1-128 (UCC/EAN-128). Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, Certification: IEC60825-1, EN60825-1, FCC, ICES, EN55022. Power source type: AC, Power consumption (typical): 1.4 W, Power consumption (standby): 1.2 W. Weight: 170 g, Width: 67 mm, Depth: 66 mm
The MS3580 QuantumT provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a compact form factor. Patented CodeGate technology saves time and reduces unwanted scans by offering a single-line mode for scanning menu-style codes. A small footprint and numerous stand options minimize required counter space, increasing available room for merchandise and advertisement displays.
Scan & Camera
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | GS1-128 (UCC/EAN-128) |
| Maximum scan width | 27.9 cm |
Connectivity & Ports
| Standard interfaces | USB |
Audio
| Buzzer | Yes |
Processor & Memory
| Input voltage | 5 V |
Battery & Power
| Power source type | AC |
| Power consumption (typical) | 1.4 W |
| Power consumption (standby) | 1.2 W |
Dimensions, Weight & Design
| Product colour | Black |
| Weight | 170 g |
| Width | 67 mm |
| Depth | 66 mm |
| Height | 108 mm |
| Wavelength | 650 nm |
Operating Conditions
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certifications
| Harmonized System (HS) code | 84716070 |
| Certification | IEC60825-1, EN60825-1, FCC, ICES, EN55022 |
Other specifications
| Type | Fixed bar code reader |
| Sensor type | Laser |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Connectivity technology | Wired |
