TSC MH241 Series, 8 dots/mm (203 dpi), disp., RTC, USB, RS232, Ethernet, kit (USB)
HIGHLIGHTS
- Direct thermal / Thermal transfer
- 203 x 203 DPI
- Maximum printing width: 10.4 cm Print speed: 356 mm/sec
- Connectivity technology: Wired
- USB port
- Display: LCD Colour display
- Description
- Additional information
- Documents
Description

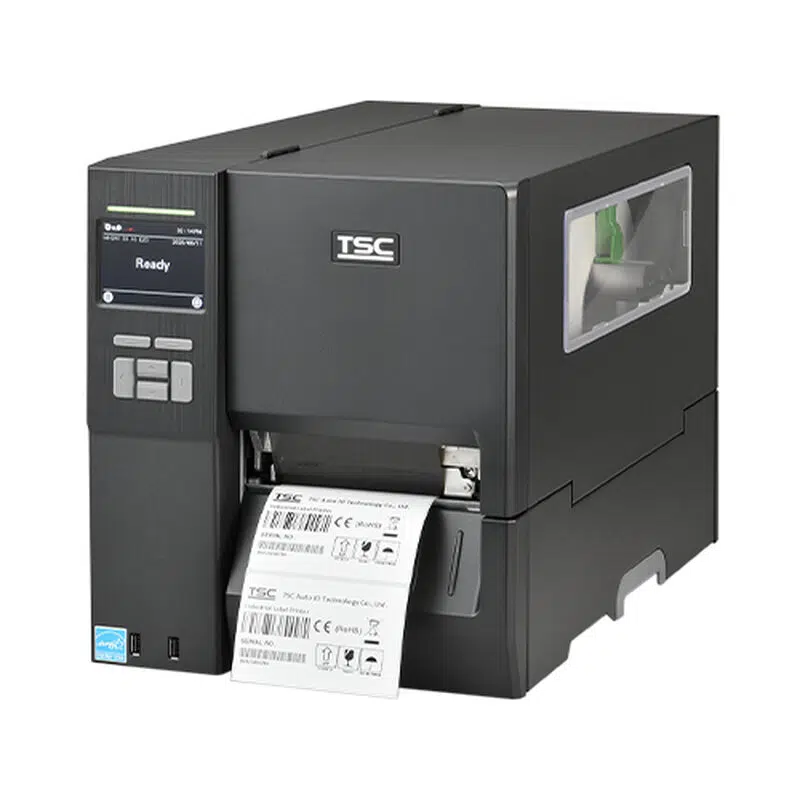

TSC MH241T. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 356 mm/sec. Connectivity technology: Wired, USB port. Supported paper width: 114 mm. Product colour: Black
This series features our flagship industrial barcode label printer with premium printhead technology, fast processor, and memory capacity to print high quality labels at the fastest speeds.
There are 18 MH series 4-inch wide printer models available in our performance industrial printer lineup. This series offers print resolution at 203 dpi and print speeds up to 14 ips, 300 dpi resolution at print speeds up to 12 ips, and 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print, and other ultra-high-resolution images. Multiple resolutions and the ability to print on a wide variety of labels, ranging from healthcare patient safety, electronics, and jewelry labeling to shipping and distribution labels, make the MH Series ideal for industrial duty printing.
| Print technology | Direct thermal / Thermal transfer |
| Print speed | 356 mm/sec |
| Maximum printing width | 10.4 cm |
| Ribbon length | 600 m |
| Ribbon width | 11.4 cm |
| Maximum print height | 25.4 m |
| Printable dot numbers | 8 dot |
Media & Labels
| Maximum roll diameter | 7.62 cm |
| Supported paper width | 114 mm |
Display
| Maximum resolution | 203 x 203 DPI |
| Display | LCD |
| Colour display | Yes |
| Built-in display | Yes |
Connectivity & Ports
| Connectivity technology | Wired |
| USB port | Yes |
| RS-232 ports | 1 |
Wireless & Network
| Wi-Fi | No |
| Bluetooth | No |
Processor & Memory
| Internal memory | 256 MB |
| Flash memory | 512 MB |
Dimensions, Weight & Design
| Product colour | Black |
| Colour | No |
Certifications
| Harmonized System (HS) code | 84433210 |
Other specifications
| Control type | Buttons, Touch |
| Optional connectivity | Bluetooth, Ethernet, Serial (RS-232), USB 2.0, Wireless LAN |
