Name: TSC MH641P, 24 dots/mm (600 dpi), rewinder, disp., RTC, USB, RS232, Ethernet - MH641P-A001-0302 | Delfi
Brand: TSC
SKU: MH641P-A001-0302
Price: 14361.00 DKK
Availability: OutOfStock

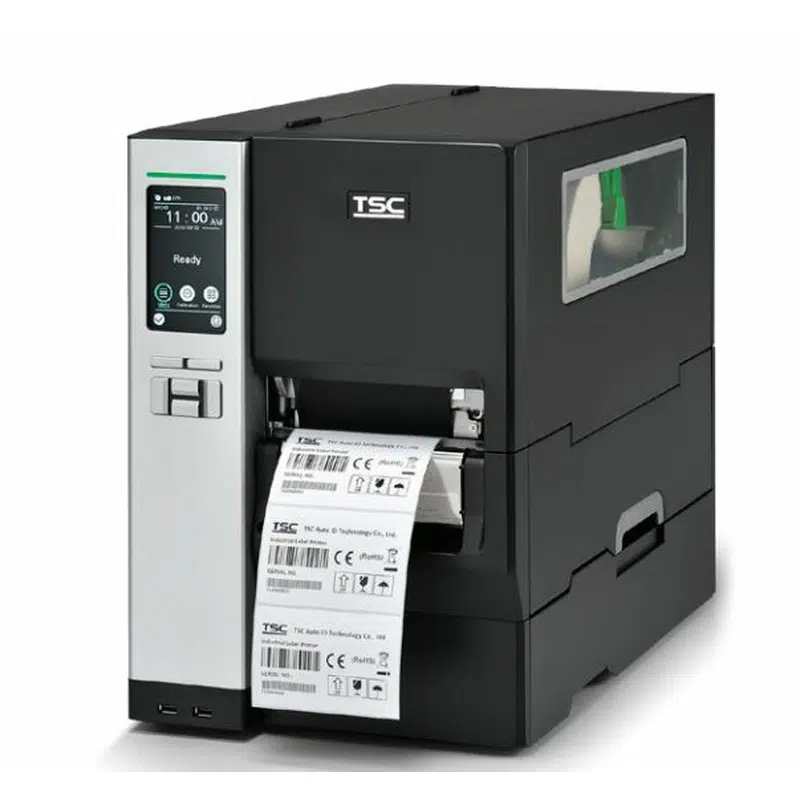

TSC MH641P, 24 dots/mm (600 dpi), rewinder, disp., RTC, USB, RS232, Ethernet

HIGHLIGHTS

Direct thermal / Thermal transfer
600 x 600 DPI
Printing colours: Black
Maximum printing width: 10.4 cm Print speed: 152 mm/sec
Built-in barcodes: 1D, 2D
Connectivity technology: Wired
USB port Ethernet LAN
Display: LCD 10.9 cm (4.3") 480 x 272 pixels Colour display Backlight display
18.9 kg

TSC MH641P, 24 dots/mm (600 dpi), rewinder, disp., RTC, USB, RS232, Ethernet

MH641P, 24 dots/mm (600 dpi), rewinder, disp., RTC, USB, RS232, Ethernet

14.361,00kr. Excl. VAT

SKU: MH641P-A001-0302

Out of stock

Description
Additional information
Documents

Description

TSC MH641P. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 600 x 600 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 104 mm. Product colour: Black, Grey

MH Series 4-Inch Performance Industrial Printers
This series features our flagship industrial barcode label printer with premium printhead technology, fast processor, and memory capacity to print high quality labels at the fastest speeds.

Scan & Camera

Built-in barcodes

1D, 2D

Print technology	Direct thermal / Thermal transfer
Print speed	152 mm/sec
Maximum printing width	10.4 cm
Ribbon length	600 m
Page description languages	DPL, EPL, ZPL, ZPL II
Ribbon width	11.4 cm
Number of fonts	8
Rotated printing	Yes
Printing colours	Black

Media & Labels

Media thickness	0.06 - 0.28 mm
Supported paper width	104 mm
Maximum media length	2.54 m
Core diameter	7.62 cm

Display

Maximum resolution	600 x 600 DPI
Display	LCD
Display diagonal	10.9 cm (4.3")
Colour display	Yes
Display resolution	480 x 272 pixels
Backlight display	Yes
Built-in display	Yes

Connectivity & Ports

Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
USB 2.0 ports quantity	1
RS-232 ports	1
Cables included	AC, USB

Processor & Memory

Internal memory	256 MB
Flash memory	512 MB
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Built-in processor	Yes

Dimensions, Weight & Design

Product colour	Black, Grey
Width	276 mm
Depth	502 mm
Height	412 mm
Weight	18.9 kg
Colour	No

Operating Conditions

Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-40 - 60 °C

Certifications

Certification

FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV/safety, CCC, KC, BIS, ENERGY STAR

Other specifications

Control type

Buttons, Touch
