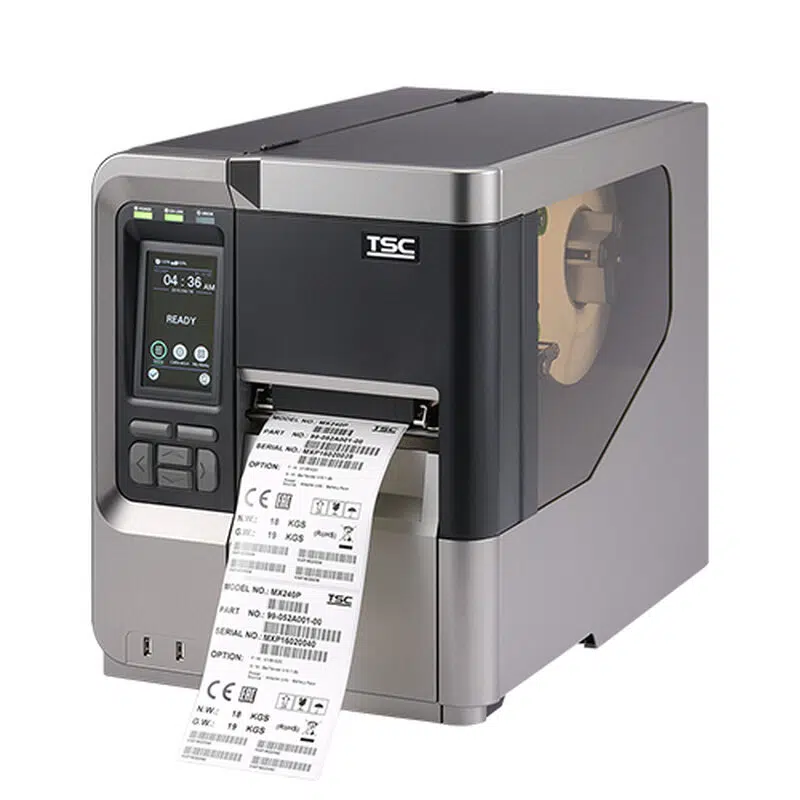

TSC MX341P, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, Ethernet
TSC MX341P, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, Ethernet
MX341P, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, Ethernet
15.299,00kr.
- Description
- Additional information
Description
TSC MX341P. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 356 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 104 mm. Product colour: Black, Grey
The MX Series industrial thermal printers are ruggedly built for high volume, high quality, label printing. The industrial-grade MX Series was designed to deliver 24×7 high-volume performance. It features a die-cast aluminum print mechanism housed in a very strong yet lightweight cabinet. This design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Additional information
| Print technology | Direct thermal / Thermal transfer |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Print speed | 356 mm/sec |
| Maximum printing width | 10.4 cm |
| Media thickness | 20 – 114 mm |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Product colour | Black, Grey |
| Display | LCD |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Operating relative humidity (H-H) | 25 – 85% |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Width | 300 mm |
| Depth | 510 mm |
| Height | 393 mm |
| Weight | 18 kg |
| Colour | No |
| Supported paper width | 104 mm |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Certification | BIS, CB, CCC, CE Class B, EAC, FCC Class B, KC, TUV, UL, cUL, C-Tick Class B, BSMI, Mexico CoC, Energy Star |
| Ribbon length | 600 m |
| Page description languages | DPL, EPL, ZPL, ZPL II |
| Built-in barcodes | 1D, 2D |
| Control type | Buttons, Touch |
| Ribbon width | 11.4 cm |
| Maximum media length | 11.4 m |
| Core diameter | 7.62 cm |
| Colour display | Yes |
| Number of fonts | 8 |
| Display resolution | 480 x 272 pixels |
| Printable dot numbers | 12 dot |
| Cables included | AC, USB |
| Rotated printing | Yes |
| Printing colours | Black |
| Built-in processor | Yes |
| Backlight display | Yes |
| Built-in display | Yes |
