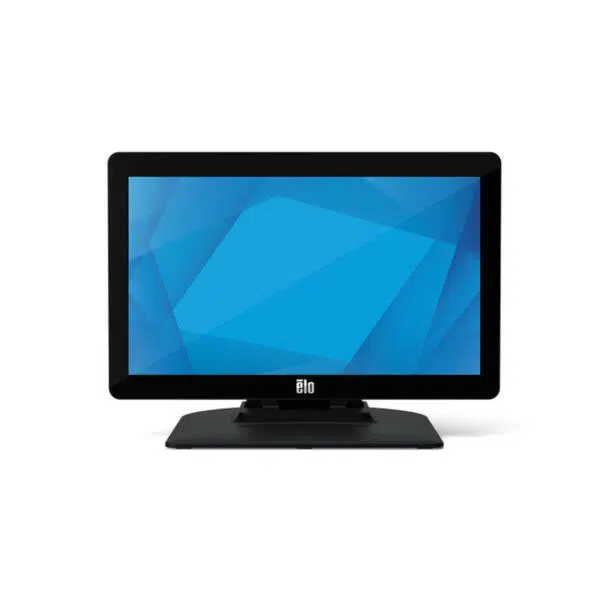

Elo 1502L 15.6-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch

HIGHLIGHTS

  • PCAP (Projected Capacitive) - 10 Touch
  • Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)
  • Monitor Thickness: 1.28" / 32.4 mm panel depth

Elo 1502L 15.6-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch

USB Controller, Anti-glare, Zero-bezel,No stand,
USB-C, HDMI and VGA Inputs, Black,

15.6″ 1920 x 1080 TFT LCD (LED), 180 nits, 30 ms, Anti-glare, 16:9, PCAP, USB, VGA, HDMI

4.149,00kr. Excl. VAT

SKU: E125496 Delfi nr.: 7405233
Out of stock

Description

Elo Touch Solutions E125496. Display diagonal: 39.6 cm (15.6″), Display technology: LED, Display resolution: 1920 x 1080 pixels, HD type: Full HD, Touchscreen. Product colour: Black

Elo’s 1502L
Touchscreen Monitor

The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction – making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

3 year

Scan & Camera

Horizontal scan range31.5 - 82 kHz
Vertical scan range50 - 75 Hz

Display

Display diagonal39.6 cm (15.6″)
Display technologyLED
Display resolution1920 x 1080 pixels
TouchscreenYes
Contrast ratio (typical)700:1
Viewing angle, horizontal160°
Viewing angle, vertical160°
Display number of colours262144 colours
HDMI ports quantity1
VESA mountingYes
Screen shapeFlat
Panel mounting interface75 x 100 mm
HD typeFull HD
Panel typeTFT
Native aspect ratio16:9
Supported graphics resolutions1280 x 720 (HD 720), 720 x 400, 1280 x 800 (WXGA), 1280 x 960, 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 800 x 600 (SVGA), 1366 x 768, 1440 x 900 (WXGA+), 1024 x 768 (XGA), 640 x 480 (VGA), 640 x 400, 16
On Screen Display (OSD)Yes
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours12 kWh
Energy efficiency scaleA to G
Viewable size, horizontal34.4 cm
Viewable size, vertical19.4 cm
Anti-glare screenYes

Connectivity & Ports

Cables includedAC, USB Type-A to USB Type-C, HDMI

Audio

Built-in speaker(s)Yes
RMS rated power2 W

Processor & Memory

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Battery & Power

Power consumption (typical)9.5 W
Power consumption (standby)1.87 W
Power consumption (off)0.2 W

Dimensions, Weight & Design

Product colourBlack
Width (with stand)387 mm
Depth (with stand)32.4 mm
Height (with stand)244.4 mm
Weight (with stand)1.16 kg
Package width175 mm
Package depth451 mm
Package height320 mm
Package weight3.39 kg
Package typeBox

Operating Conditions

International Protection (IP) codeIPX1
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%

In the box

Quick start guideYes

Other specifications

Response time30 ms
DC-in jackYes
