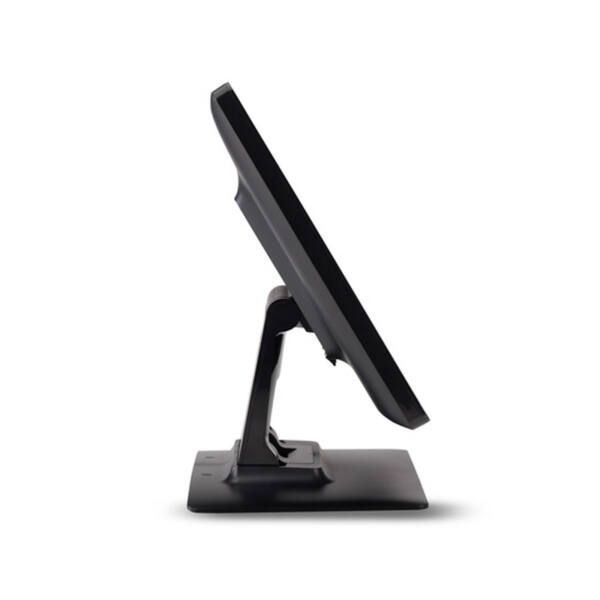

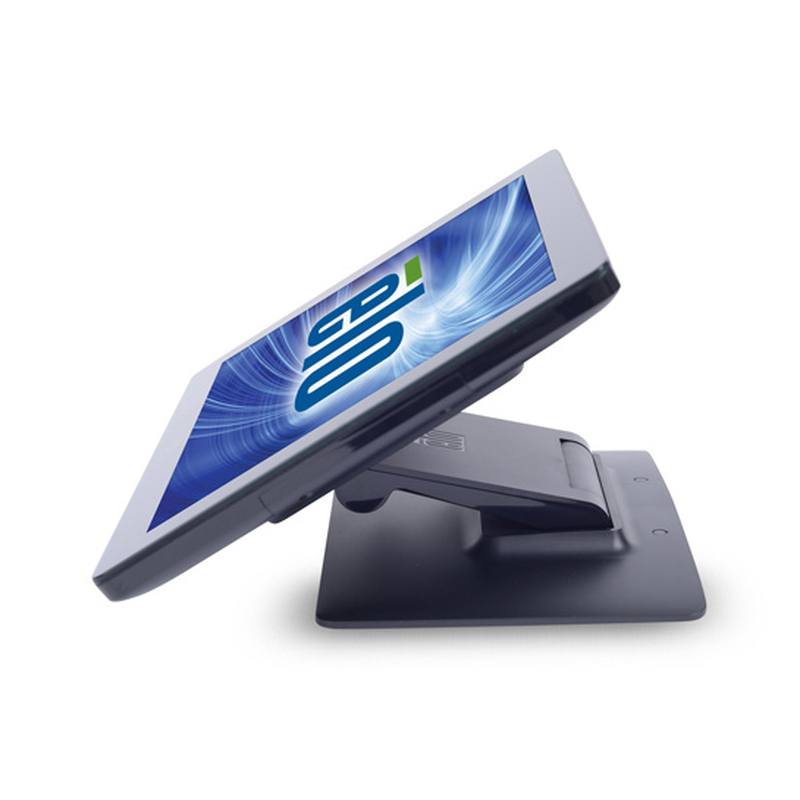

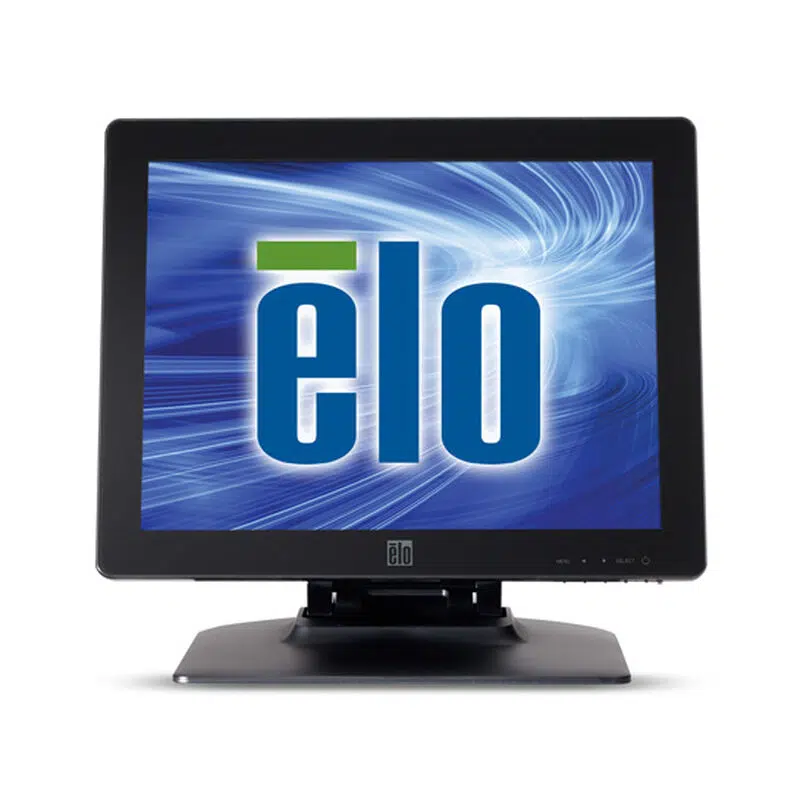

Elo 1523L, Touch Monitor, 15”, Black
Elo 1523L, Touch Monitor, 15”, Black
1523L, Desktop Touchmonitor, iTouch Plus, Multi-touch, 15″, 1024 x 768, 160/140, 700:1, Mini D-Sub, DVI-D, IntelliTouch Pro PCAP
4.375,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Elo Touch Solutions 1523L. Display diagonal: 38.1 cm (15″), Display resolution: 1024 x 768 pixels, Display brightness: 270 cd/m². Product colour: Black, Mean time between failures (MTBF): 50000 h. Package width: 447 mm, Package depth: 207 mm, Package height: 380 mm
The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.
The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.
Both touch technologies provide a stable “drift-free” operation with outstanding image clarity, resolution and light transmission – for an accurate touch response and vivid images.
3 years
Display
| Display diagonal | 38.1 cm (15″) |
| Display resolution | 1024 x 768 pixels |
| Touchscreen | Yes |
| Display brightness | 270 cd/m² |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Native aspect ratio | 4:3 |
| LED backlight | Yes |
Dimensions, Weight & Design
| Product colour | Black |
| Package weight | 7 kg |
| Package width | 447 mm |
| Package depth | 207 mm |
| Package height | 380 mm |
Operating Conditions
| Mean time between failures (MTBF) | 50000 h |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Other specifications
| Response time | 16 ms |
