Elo IDS computer module
Elo IDS computer module

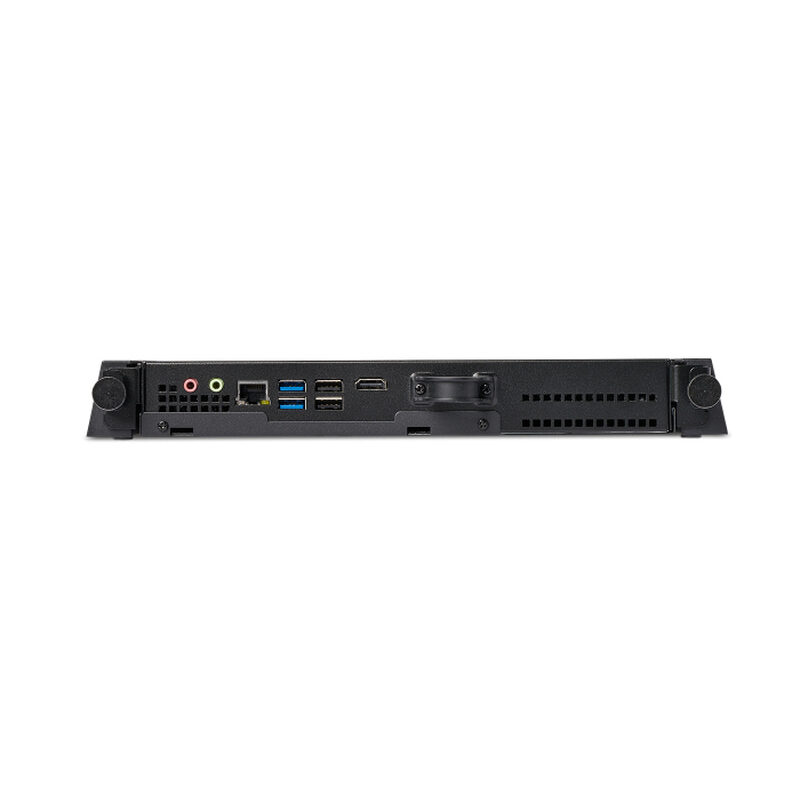

ECMG3, Intel Core i5-6500, 8 GB DDR4, 256 GB SSD, 2x USB 2.0 A, 2x USB 3.0 A, HDMI, 300x428x37 mm, Windows 10
7.517,00kr.
- Description
- Additional information
Description
Elo Touch Solutions ECMG3. Processor family: Intel® Core™ i5, Processor model: i5-6500, Processor generation: 6th gen Intel® Core™ i5. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 32 GB. Total storage capacity: 256 GB, Storage media: SSD, SSD interface: Serial ATA. On-board graphics card model: Intel® HD Graphics 530. Motherboard chipset: Intel® H110
The Elo Computer Modules (ECM) featuring the Intel® Core™ 6th Generation CPUs and enhanced graphics engine are available with both Intel i3, i5 & i7 processors for Microsoft® Windows® 10, Windows 7 or no operating system. The commercial grade computer modules transform Elo’s 3202L, 4202L, 4602L, 5502L, 5551L and 7001LT touchscreens into powerful touchcomputer platforms with compatibility to most content management servers, enabling customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage – the power of touch.
Easy Installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry’s thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Maximize Value
Using Elo’s computer modules instead of a separate external device can reduce complexity, provide added reliability, minimize mounting profile and reduce installation/maintenance costs.
Built-to-Last
The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.
3-year
Additional information
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor model | i5-6500 |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor boost frequency | 3.6 GHz |
| Bus type | DMI3 |
| Conflict-Free processor | Yes |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2400 MHz |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Card reader integrated | No |
| SSD capacity | 256 GB |
| On-board graphics card | Ja |
| On-board graphics card model | Intel® HD Graphics 530 |
| Discrete graphics card | No |
| Wi-Fi | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Line-out | Yes |
| Microphone in | Yes |
| Motherboard chipset | Intel® H110 |
| Operating system installed | Windows 10 |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 5 – 90% |
| Certification | UL/cUL, CB, FCC, CE, AS, NZS, VCCI |
| Width | 300 mm |
| Depth | 428 mm |
| Height | 37 mm |
| Weight | 3.12 kg |
| Package width | 419 mm |
| Package depth | 535 mm |
| Package height | 130 mm |
| Package weight | 4.75 kg |
| SSD interface | Serial ATA |
| Graphics & IMC lithography | 14 nm |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Manual | Yes |
