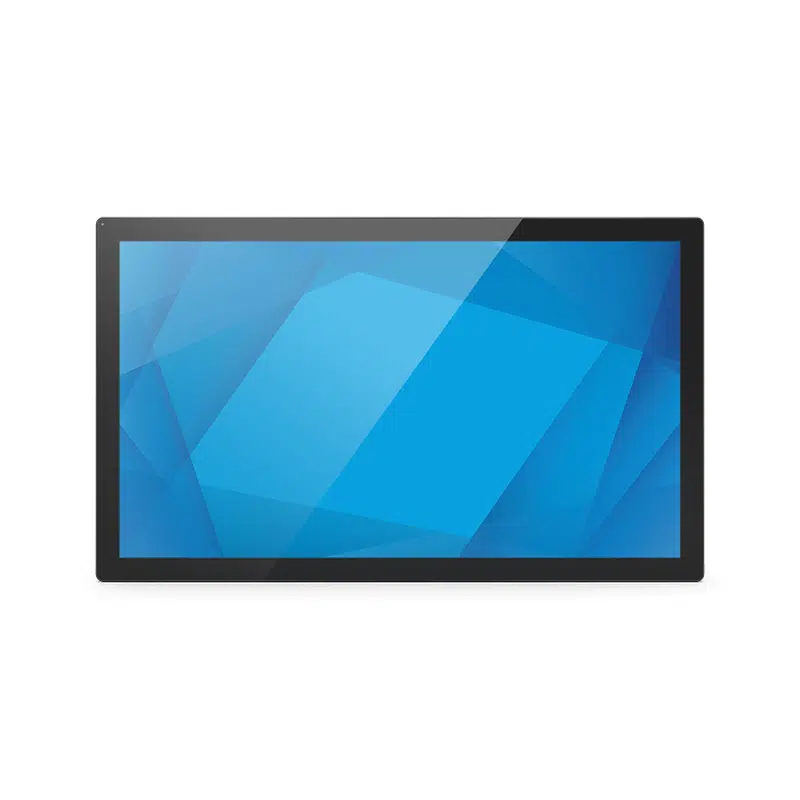

Elo 3204L, 32”, PCAP, Full HD, USB-C, Ethernet, black Vesa 400×400,
HIGHLIGHTS
- VESA for PC mounting
- Power brick and power cable mounting
- External PC power passthrough
- Contained cable routing
- Description
- Additional information
Description
Elo Touch Solutions TouchPro PCAP. Product design: Kiosk design. Display diagonal: 80 cm (31.5″), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Interactive Display
Elevate your applications with Elo’s 3204L 32‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo’s 3204L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 32‑inch tablet.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you’re enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 3204L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays
can be mounted behind a mirror, in a counter or in a fully encased
kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in
landscape, portrait and tabletop orientations, providing optimal
flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance,
Elo’s 3204L delivers the reliability and durability businesses need even in the most
demanding conditions. With the addition of extended product life cycles and global
certifications, you can trust in the long-term performance and suitability of the 3204L
for diverse international markets.
3 years
Display
| Display diagonal | 80 cm (31.5″) |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| Touchscreen | Yes |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| HDMI ports quantity | 2 |
| VESA mounting | Yes |
| Screen shape | Flat |
| Panel mounting interface | 400 x 400 mm |
| HD type | Full HD |
| Panel type | TFT-LCD |
| Native aspect ratio | 16:9 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| On Screen Display (OSD) | Yes |
| DisplayPort version | 1.2 |
| Display width | 763.7 mm |
| Display depth | 49.6 mm |
| Display height | 458.1 mm |
| Display weight | 10.9 kg |
Connectivity & Ports
| Cables included | AC |
| Ethernet LAN (RJ-45) ports | 2 |
| Placement supported | Indoor |
| USB port | Yes |
| Ethernet LAN | Yes |
| USB connector type | USB Type-C |
| RS-232 interface | Yes |
Audio
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
| Number of built-in speakers | 2 |
Processor & Memory
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum frame rate | 60 fps |
Battery & Power
| Power consumption (typical) | 45 W |
| Power consumption (standby) | 2.3 W |
| Power consumption (off) | 0.29 W |
Dimensions, Weight & Design
| Product colour | Black |
| Package width | 905 mm |
| Package depth | 160 mm |
| Package height | 680 mm |
| Package weight | 15.3 kg |
| Product design | Kiosk design |
Operating Conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Mean time between failures (MTBF) | 50000 h |
Certifications
| Certification | FCC |
| Purpose | Universal |
Other specifications
| Response time | 8 ms |
| Number of simultaneous touchpoints | 40 |
| Orientation | Horizontal |
