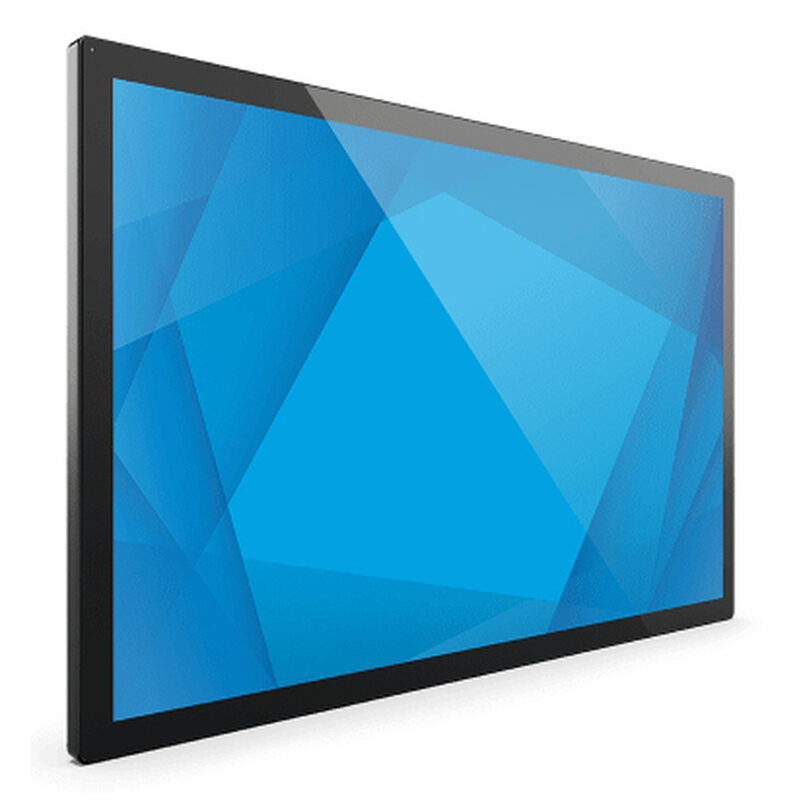

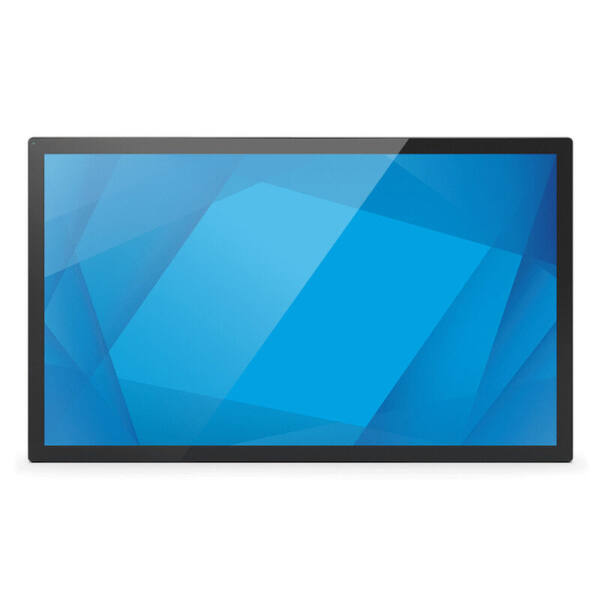

Elo 4304L, Projected Capacitive, Full HD, USB-C, Ethernet, kit, black

HIGHLIGHTS

  • VESA for PC mounting
  • Power brick and power cable mounting
  • External PC power passthrough
  • Contained cable routing

Elo 4304L, Projected Capacitive, Full HD, USB-C, Ethernet, kit, black

42.5”, Active matrix TFT LCD, 16:9, 1920 x 1080 @ 60hz, 4000:1, 2 x HDMI 1.4, USB-C, USB-A, 47 W, 1007.4 x 595.7 x 55.6 mm, 17.87 kg

11.155,00kr. Excl. VAT

SKU: E103351
In stock – 2-5 days delivery

Description

Elo Touch Solutions 4304L. Product design: Interactive flat panel. Display diagonal: 108 cm (42.5″), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black

Interactive Display
Elevate your applications with Elo’s 4304L 43‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo’s 4304L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 43‑inch tablet.

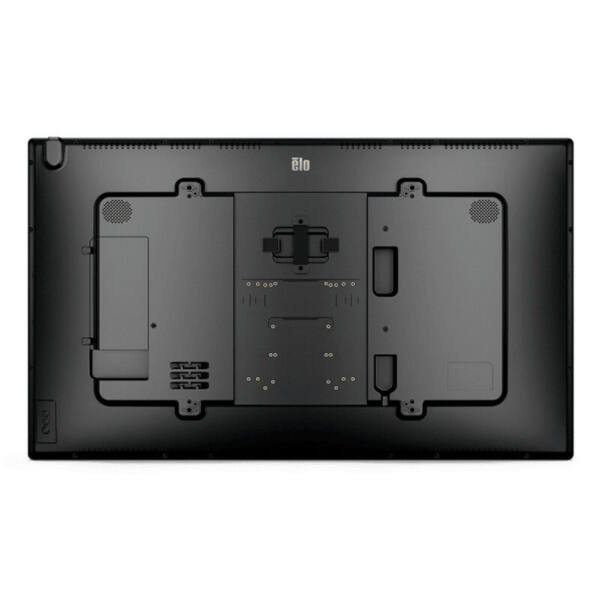

The back of your display never looked so clean.

Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you’re enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 4304L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 4304L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 4304L for diverse international markets.

3 Years

Scan & Camera

Horizontal scan range30 - 70 kHz
Vertical scan range24 - 64 Hz

Display

Display diagonal108 cm (42.5″)
Display technologyLED
Display resolution1920 x 1080 pixels
Display brightness500 cd/m²
TouchscreenYes
Touchscreen technologyProjected capacitive system
Contrast ratio (typical)500:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.7 million colours
HDMI ports quantity2
VESA mountingYes
Screen shapeFlat
Panel mounting interface100 x 100,400 x 400 mm
Aspect ratio16:9
Panel typeTFT-LCD
HDMI version1.4
DisplayPorts quantity1
On Screen Display (OSD)Yes
Energy consumption (SDR) per 1000 hours41 kWh
Energy efficiency scaleA to G
DisplayPort version1.2
Active display area (W x H)940.9 x 529.3 mm
Display width1007.4 mm
Display depth55.6 mm
Display height595.7 mm
Display weight17.9 kg
Number of displays1
HDMI input ports quantity2

Connectivity & Ports

Cables includedPower, USB Type-C to USB Type-C
Ethernet LAN (RJ-45) ports2
USB portYes
Ethernet LANYes
USB connector typeMicro-USB, USB Type-A, USB Type-C

Wireless & Network

Wall mountableYes

Audio

Built-in speaker(s)Yes
RMS rated power16 W
Number of built-in speakers2

Processor & Memory

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Battery & Power

Power consumption (typical)47 W
Power consumption (off)0.29 W
Power consumption (sleep)1.43 W

Dimensions, Weight & Design

Product colourBlack
Package width1150 mm
Package depth187 mm
Package height820 mm
Package weight23 kg
Product designInteractive flat panel
Mounting typeDesk/Wall

Operating Conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Mean time between failures (MTBF)50000 h

Certifications

CertificationUL 62368-1, FCC/CEC, cUL, IC, CB (International safety) (IEC/EN60950-1+IEC/EN62368-1), CE, VCCI, RCM, CCC/CEL, China RoHS, NOM Mexico, IK07, UL60950

Other specifications

Response time8 ms
Number of simultaneous touchpoints2
HDCPYes
Operating hours (hours/days)24/7
Ambient light sensorYes
Tilt adjustmentYes
