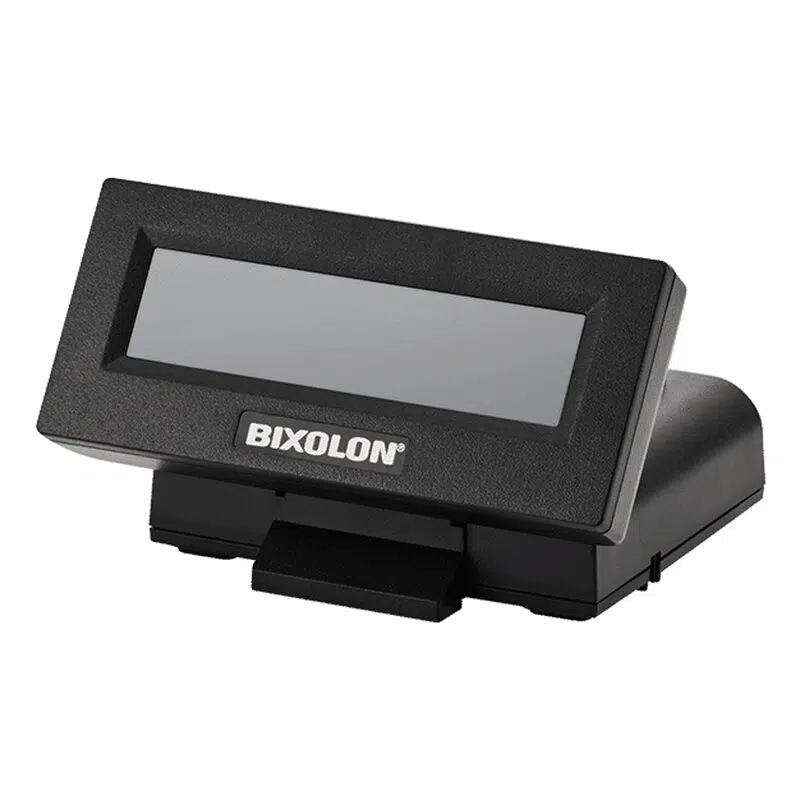

Bixolon BCD-3000, kit (USB, RS232), black, USB, RS232
HIGHLIGHTS
- LCD Black
- 100 cd/m²
- Interface: RS-232
- Power source type: USB
Bixolon BCD-3000, kit (USB, RS232), black, USB, RS232
STN LCD (mono), Blue / White, 96 x 19.2 mm, 100 cd/m², 500mA, Black, 250g
730,00kr. Excl. VAT
- Description
- Additional information
- Documents
Description
Bixolon BCD-3000. Display type: LCD, Display number of lines: 2 lines, Display digits: 20 digits. Product colour: Black. Interface: RS-232, Optional connectivity: USB 2.0. Power source type: USB. Width: 130 mm, Depth: 68.5 mm, Height: 110.3 mm
The BCD-3000 is BIXOLON’s smallest customer display, this mini Super Twister Nematic LCD Customer display is approximately 287% smaller than a standard customer display. Featuring a enhanced mono LCD with variable brightness, 2 lines of text display with flexible character alignment (horizontal, vertical, font and line spacing) and adjustable text alignment (center, left and right). While offering simple image download and display utility.
The customer display features multiple cable paths for easy management, the display has an adjustable angle from 0 to 35°. Featuring an easy plug and play USB setup and is compatible with all major operating systems including Android™, iOS™ and Windows®.
Additional information
| Display type | LCD |
|---|---|
| Display number of lines | 2 lines |
| Display digits | 20 digits |
| Display brightness | 100 cd/m² |
| Display size (HxV) | 99 x 24 mm |
| Product colour | Black |
| Interface | RS-232 |
| Width | 130 mm |
| Depth | 68.5 mm |
| Height | 110.3 mm |
| Weight | 250 g |
| Optional connectivity | USB 2.0 |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 55 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| LED backlight | No |
| Touchscreen | No |
| Built-in speaker(s) | No |
| Card reader integrated | No |
| Effective viewing area | 99 x 24 mm |
| Power source type | USB |
