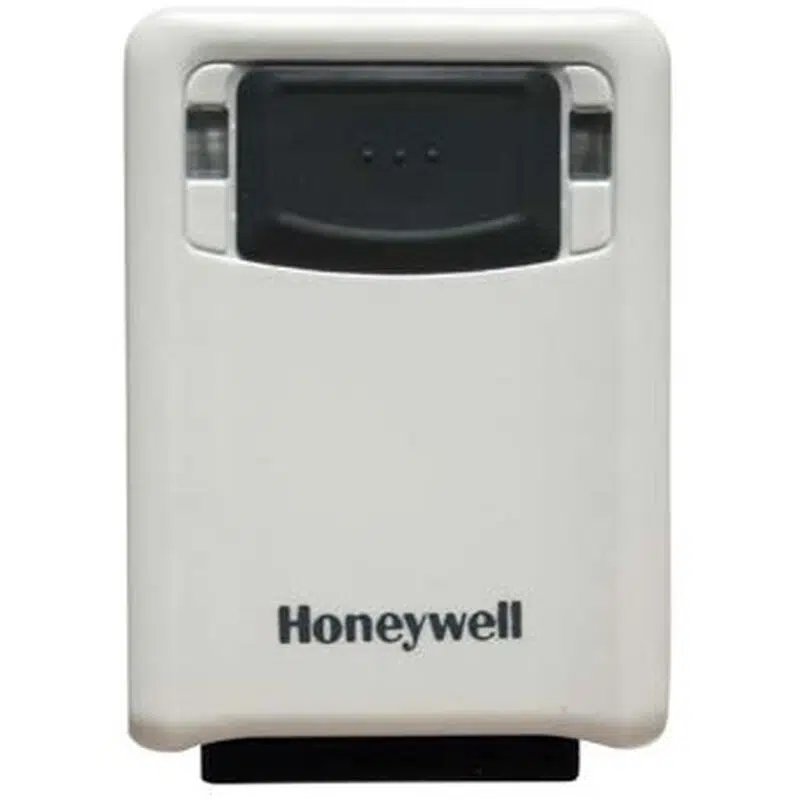

Honeywell Vuquest 3320G USB Kit, 2D Area Imager.
HIGHLIGHTS
- Fixed bar code reader Ivory
- Scanner type: 1D/2D Sensor type: Photo diode
- PDF417
- Wired Standard interfaces: RS-232, USB, Keyboard wedge
- Power source type: DC
Honeywell Vuquest 3320G USB Kit, 2D Area Imager.
3320G-4USB-0, 1D, PDF417, 2D, USB, 5VDC ± 0.25V, 838 x 640 pixel, IP53, ±45°, ±65°
304,00 € Excl. VAT
- Description
- Additional information
- Documents
Description
Honeywell 3320G-4USB-0. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: Photo diode. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Ivory, International Protection (IP) code: IP53. Power source type: DC, Power consumption (typical): 2.3 W, Power consumption (standby): 0.45 W. Weight: 77 g, Width: 51 mm, Depth: 73 mm
The Honeywell Vuquest3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments.
Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.
2 year
Scan & Camera
| Scanengine | 1D, 2D |
| Scanner type | 1D/2D |
| Pitch reading angle | -45 - 45° |
| Yaw reading angle | -65 - 65° |
| Linear (1D) barcodes supported | PDF417 |
| Optical sensor resolution | 838 pixels |
Connectivity & Ports
| Connection | Cabled |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Cables included | USB |
Processor & Memory
| Input voltage | 5 V |
Battery & Power
| Power source type | DC |
| Power consumption (typical) | 2.3 W |
| Power consumption | 450 mA |
| Power consumption (standby) | 0.45 W |
Dimensions, Weight & Design
| Product colour | Ivory |
| Weight | 77 g |
| Width | 51 mm |
| Depth | 73 mm |
| Height | 26 mm |
Operating Conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| International Protection (IP) code | IP53 |
Certifications
| Harmonized System (HS) code | 84716070 |
Other specifications
| Type | Fixed bar code reader |
| Sensor type | Photo diode |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Connectivity technology | Wired |
| LED indicators | Yes |
